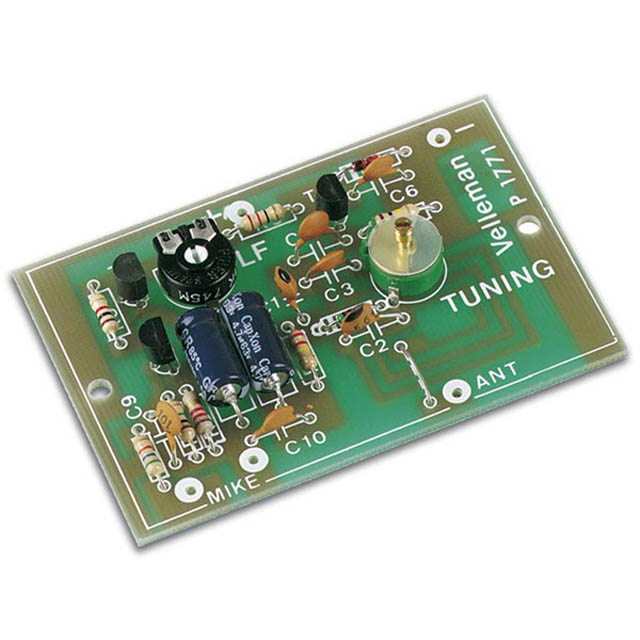

Mini FM Modulator/Transmitter Kit (100-108MHz)
Integrated preamplifier, to which any type of microphone may be connected. Can be used for Family broadcasts, baby phone, security. May be received by any simple portable FM radio or tuner. True FM modulation using a varactor diode
Requires Soldering Assembly.
Features - Use it as a test oscillator for FM tuners
- For family broadcasts
- As part of a wireless microphone
- For security applications
- Nice gadget for your own unique application
Specifications- High-quality varicap (varactor) modulation
- Ultra stable FET oscillator
- Frequency range from 100 to 108 MHz
- FET input amplifier with high sensitivity (10mV max.)
- Easy microphone hook-up
- No coils to wind - integrated on the PCB
- Reception with any FM radio*
- Miniature size, yet very sensitive
- Input sensitivity preamplifier: 5mV
- Power supply : 9-12VDC (use battery for best results)
- PCB Dimensions : 45 x 70 mm (1.8 x 2.7 inches)
*The use of this device as a transmitter might be illegal in your area. Please check with the local authorities. Eavesdropping into private conversations might be considered a crime in your area.
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
12+
-
Part No
K1771
-
Manufacturer
Velleman
-
Stock No
2521-AE2
-
SKU No
179535
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
Velleman K1771 Document 1
