Programmable Lcd Message Board - Soldering required
PROGRAMMABLE LCD MESSAGE BOARD
Image is for illustrative purposes only. Please refer to product description.
Share

Programmable Lcd Message Board - Soldering required

Part#:K8045 Stock#: 2525-AE2 SKU: 198253
$65.95 $39.95 CAD
Out Of Stock
Availability
Age 15+

Stock and Aisle Location
Store Qty Aisle

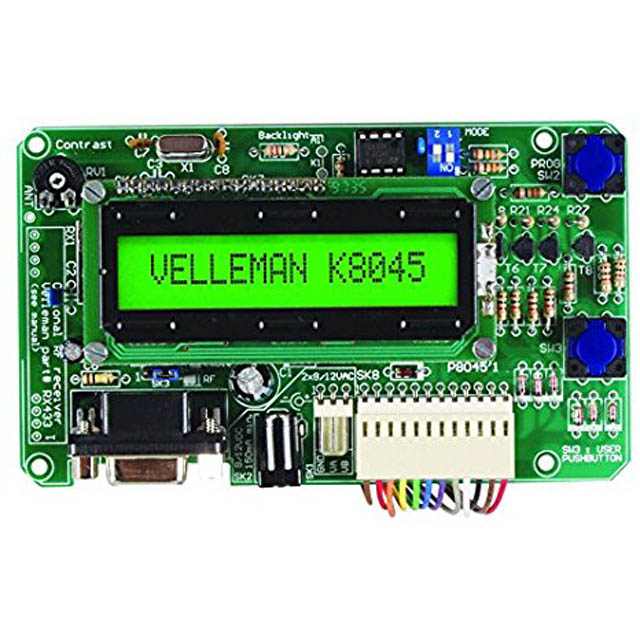

Add an LCD display to any low-tech application and make it look high-tech! Replace up to 9 indicators or lamps by one single backlit LCD. Recall messages simply by pressing a button. Inputs accept dry contacts, open collectors and logic levels. No programming skills required! Store up to 9 sixteen-character messages in non-volatile EEPROM memory. 4 operating modes: 1): display the status of all inputs simultaneously. 2): display all active inputs. 3): display active input with highest priority. 4): display text messages in a 'tickertape'-fashion. A default message can be entered which is displayed when no inputs are active. Messages can be transferred to the K8045 from any PC or terminal. message transfer software is available from www.velleman.be Wireless data transfer between PC/terminal and K8045 is possible with optional RX/TX433 modules 1 on-board pushbutton available for your application.
Inputs: 8 inputs (24Vmax). Display: 16 character 1 line supertwist backlit LCD. Communication: RS232 serial 2400/N/8/1 no handshaking. Power supply: 9-12V DC / 150mA adapter or 2 x 9V AC / 150mA transformer. Dimensions: 4.9" x 2.9" x 1.2"
*Prices subject to change without notice. We reserve the right to limit quantities.
  • Age
    15+
  • Part No
    K8045
  • Manufacturer
    Velleman
  • Stock No
    2525-AE2
  • SKU No
    198253

Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
