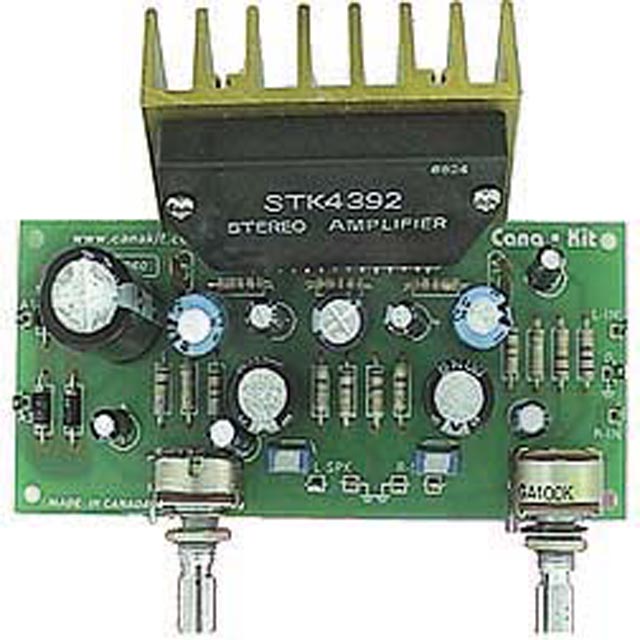

POWER AMP 50W STEREO HYBRID - Soldering required

This complete high quality, low noise stereo audio power amplifier is based around the Hybrid Integrated Circuit STK4392 manufactured by Sanyo. The circuit incorporates volume and balance controls and has a maximum music output power of 35W per channel (25W per channel RMS). The circuit incorporates an on board power supply; therefore, only an appropriate transformer is required to power the circuit.

---

Supply voltage: 24 to 32V AC Transformer / 2A (JRC-5632-1) Input sensitivity: 300mV Output power using 32V AC: Music power – 2 x 35W / 4 Ohm RMS power – 2 x 25W / 4 Ohm Includes volume and balance controls Maximum distortion: < 0.2% Frequency response: 30Hz to 30KHz PC board dimensions: 4.51" x 2.01"

• Age

  12+

• Part No

  CK260

• Manufacturer

  CANAKIT

• Stock No

  2015-EF2

• SKU No

  204270

Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
