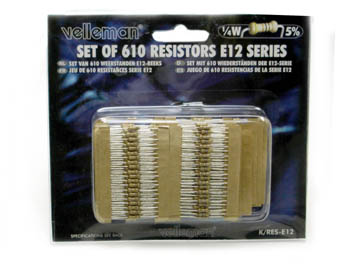

High-quality carbon film resistors with a connecting wire that is easily soldered.
Used in applications for TV, audio and video equipment, telephone receivers and communication systems, instrumentation, home appliances and more importantly, for the Maker hobbyist. Fill-up your experimenters bin, today!
Kit contains 610 pieces (10 pieces per value)
- Series: E12
- Number of Values: 61 (from 10R to 1M)
- Power Rating: 1/4W
- Operating Temperature Range: -67F to +311F
- Tolerance: 5%
- Maximum Operating voltage: 250V
Resistors include 10 pieces each following value:
Ω : 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82,
100, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820
KΩ : 1, 1.2, 1.5, 1.8, 2.2, 2.7, 3.3, 3.9, 4.7, 5.6, 6.8, 8.2,
10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82,
100, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820
MΩ : 1
-
Part No
K/RES-E12
-
Manufacturer
Velleman
-
Stock No
RAB-ASSORTED-610
-
SKU No
220613
