Features
�Meets CE Requirements
�Lifetime Limited Warranty
�Designed to CAT III 600V/CAT II 1000V (DSA2009 TRMS)
�Designed to CAT IV 600 CAT III 1000V (DSA2003)
�Pollution Degree 2 IEC 61010-1 (DSA2003 and DSA2009 TRMS)
�Current Capability up to 2000A
�Thumbwheel Power/Range Selector Switch
�Tear Drop Shaped Jaws
�Electronic Overload Protection
�Enhanced True RMS Measurement Capability (DSA2009 TRMS)
�Data Hold
�Peak Hold
�Continuity
�Sleep Function
�Output Terminal
�Broad Frequency Response (40Hz - 1KHz)
Specifications:
Display: 3.5 digit LCD, maximum reading 4000 with function and decimal annunciators
Range Selection: Manual rotary switch
Overrange Indication: 3 least significant digits blanked
Sampling Rate: 3 times per second (2009A); Approx. 2.5 times per second (2003A)
Dielectric Strength: 2500VAC for one minute
Max. Conductor Size: 2.16" (55mm) diameter
Battery Indicator: "BATT" symbol appears on display to indicate low battery
Operating Environment: 0� to 40�C (14� to 122�F) at <85% RH
Storage Environment: -20� to 60�C (-4� to 140�F) at <90% RH
Power Supply: One (1) 9V transistor type battery (NEDA #1604) Part #B-4, DSA2009 TRMS; Two (2) AA type batteries (NEDA #R6P ) Part #B-1, DSA2003
Battery Life: 16 hrs. typical w/carbon zinc cell (DSA2009 TRMS), 100 hrs typical with carbon zinc cell (DSA2003)
Dimensions: 9.7"H x 4.1"W x 1.9"D (247 x 105 x 49mm)
Weight: 19 oz. (540g) DSA2009 TRMS,
18.6 oz. (530g) DSA2003A
NOTE: This instrument is designed to take current readings on circuits with a maximum of 600 Volts AC.
Packaging:
Each of the DSA-2000 Series comes packed with TL-48 Test Leads, B-4 Battery (DSA2009 TRMS), two (2) B-1 Batteries (DSA2003), C-50 Carrying Case, Operating Instructions form #275 DSA2003, form #276 DSA2009 TRMS), Millivolt Output Jack and Warranty Card.
DSA2002R - comes packed with TL-48 Test Leads, two (2) B-1 Batteries, C-50 Carrying Case, Operating Instructions (form #171-1), Millivolt Output Jack and Warranty Card.
Enhanced True RMS Measurement
Broad Frequency Response (40Hz - 1KHz)
AC CURRENT up to 2000 A
AC VOLTAGE up to 750 V
DC CURRENT up to 2000 A
DC VOLTAGE up to 1000 V
RESISTANCE 4000 ohms
INSTANT CONTINUITY
DIODE TEST
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
0+
-

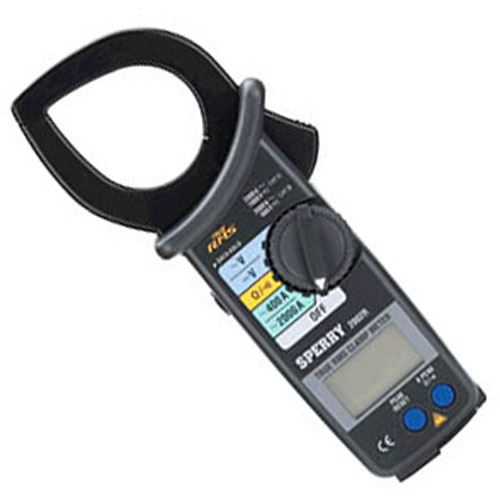

Part No
DSA-2002R
-
Manufacturer
A.W.SPERRY INSTRUMENTS INC.
-
Stock No
MJY-DSA2002R
-
SKU No
222344
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
