MAGNET DISC 1.6X0.8MM 0.8KG PULL FORCE RARE EARTH NEODYMIUM - 200 PCS/PKG

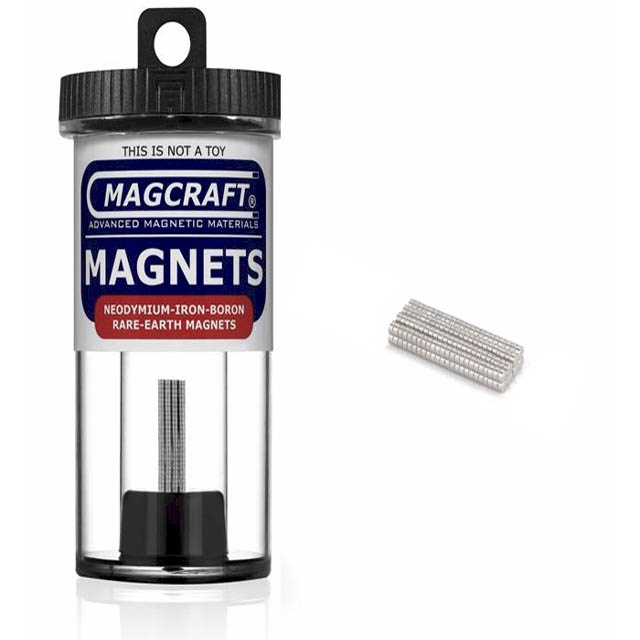

Rare Earth Magnet - Disc, 0.0625 in. Diameter x 0.03125 in. Thick, 200-Count

---

Part Number NSN0591 Imperial Dimensions 0.0625 inch diameter x 0.03125 inch thick Metric Dimensions 1.5875mm diameter x 0.79375mm thick Material Sintered Neodymium-Iron-Boron (NdFeB) Shape Disc Plating Ni-Cu-Ni (Nickel) Magnetization Direction Thickness Grade N40 Pull Force (lbs[g]) 0.17[77] Surface Field(G) 2103 Maximum Operating Temperature 80 Deg C (176 Deg F) Dimensional Tolerance +/-0.005" Magnet Quantity 200 Volume (cm3) 0 Weight (g) 0.01 Brand Magcraft Packaging Magpak Tube UPC 897970000914 Remanent Flux Density Br (kG [T]) 12.5-12.8 [1.25-1.28] Coercivity HcB (kOe [kA/m]) >=10.9 [>=867] Intrinsic Coercivity HcJ (kOe [kA/m]) >=12.0 [>=995] Maximum Energy Product Bhmax (MGOe [kJ/m3]) 38-41 [302-326] Density p(g/cm3) >=7.45 Compression Strength (Mpa) 600-1200 Bending Strength (Mpa) 150-380 Vickers Hardness (HV) 460-660 Recoil Permeability (urec) 1.05 Electrical Resistance (Ohm*mm2/m) 1.25-1.55 Curie Temperature Tc (°C) 310 Thermal Expansion Coefficient 100°C//(x10^-6/K) 6 Thermal Expansion Coefficient 100°C?(x10^-6/K) -1

• Age

  8+

• Part No

  NSN0591

• Manufacturer

  MAGCRAFT

• Stock No

  3522-AA22-200

• SKU No

  230721

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
