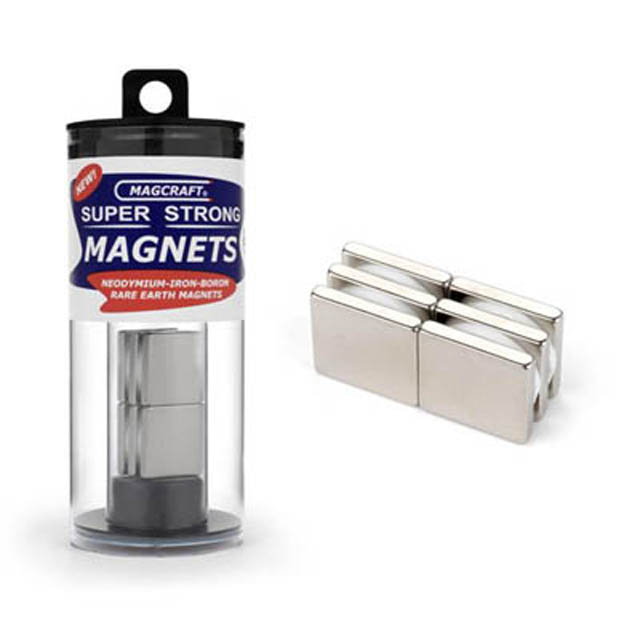

MAGNET BLOCK 19X19X3.2MM 4.1KG PULL FORCE RARE EARTH NEODYMIUM - 6 PCS/PKG

Rare Earth Magnet - Block, 0.75 in. Long x 0.75 in. Wide x 0.125 in. Thick, 6-Count

---

Part Number NSN0612 Imperial Dimensions 0.75 inch long x 0.75 inch wide x 0.125 inch thick Metric Dimensions 19.05mm long x 19.05mm wide x 3.175mm thick Material Sintered Neodymium-Iron-Boron (NdFeB) Shape Block Plating Ni-Cu-Ni (Nickel) Magnetization Direction Thickness Grade N40 Pull Force (lbs[g]) 9.05[4105] Surface Field(G) 2810 Maximum Operating Temperature 80 Deg C (176 Deg F) Dimensional Tolerance +/-0.005" Magnet Quantity 6 Volume (cm3) 1.15 Weight (g) 8.64 Brand Magcraft Packaging Magpak Tube UPC 875661000122 Remanent Flux Density Br (kG [T]) 12.5-12.8 [1.25-1.28] Coercivity HcB (kOe [kA/m]) >=10.9 [>=867] Intrinsic Coercivity HcJ (kOe [kA/m]) >=12.0 [>=995] Maximum Energy Product Bhmax (MGOe [kJ/m3]) 38-41 [302-326] Density p(g/cm3) >=7.45 Compression Strength (Mpa) 600-1200 Bending Strength (Mpa) 150-380 Vickers Hardness (HV) 460-660 Recoil Permeability (urec) 1.05 Electrical Resistance (Ohm*mm2/m) 1.25-1.55 Curie Temperature Tc (°C) 310 Thermal Expansion Coefficient 100°C//(x10^-6/K) 6 Thermal Expansion Coefficient 100°C?(x10^-6/K) -1

• Age

  8+

• Part No

  NSN0612

• Manufacturer

  MAGCRAFT

• Stock No

  3522-FA11-6

• SKU No

  230730

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
