MAGNET ARC 25.4MM OR 22.22MM IR 45DEG 25.4MM LONG S RARE EARTH

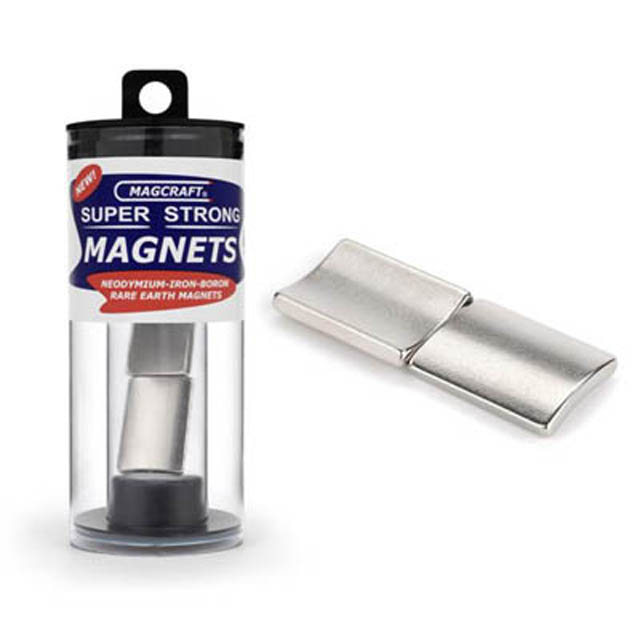

Image is for illustrative purposes only. Please refer to product description.
MAGNET ARC 25.4MM OR 22.22MM IR 45DEG 25.4MM LONG S RARE EARTH - 2 PCS/PKG
Part#:NSN0626 Stock#: 3522-BA2-2 SKU: 230734
$21.95 $19.95 CAD
Availability: 13 in stock
Stock and Aisle Location
# Store Qty Aisle
Burlington2
Cambridge2
Markham2
Mississauga1
Scarborough1
Vaughan2
Warehouse 3

Rare Earth Magnet - Arc, 1 in. Outside Radius x 0.875 in. Inside Radius x 45 in. Deg x 1 in. Long, S
Part Number NSN0626 Imperial Dimensions 1 inch outside radius x 0.875 inch inside radius x 45 deg x 1 inch long Metric Dimensions 25.4 mm outside radius x 22.225 mm inside radius x 45 deg x 25.4 mm long Material Sintered Neodymium-Iron-Boron (NdFeB) Shape Arc Plating Ni-Cu-Ni (Nickel) Magnetization Direction Diameter Grade N40 Pull Force (lbs[g]) [0] Surface Field(G) 3800 Maximum Operating Temperature 80 Deg C (176 Deg F) Dimensional Tolerance +/-0.005" Magnet Quantity 2 Volume (cm3) 0 Weight (g) 8 Brand Magcraft Packaging Magpak Tube UPC 875661000269 Remanent Flux Density Br (kG [T]) 12.5-12.8 [1.25-1.28] Coercivity HcB (kOe [kA/m]) >=10.9 [>=867] Intrinsic Coercivity HcJ (kOe [kA/m]) >=12.0 [>=995] Maximum Energy Product Bhmax (MGOe [kJ/m3]) 38-41 [302-326] Density p(g/cm3) >=7.45 Compression Strength (Mpa) 600-1200 Bending Strength (Mpa) 150-380 Vickers Hardness (HV) 460-660 Recoil Permeability (urec) 1.05 Electrical Resistance (Ohm*mm2/m) 1.25-1.55 Curie Temperature Tc (C) 310 Thermal Expansion Coefficient 100C//(x10^-6/K) 6 Thermal Expansion Coefficient 100C?(x10^-6/K) -1
  • Part No
    NSN0626
  • Manufacturer
    MAGCRAFT
  • Stock No
    3522-BA2-2
  • SKU No
    230734

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
