Magnet arc 19mm or 15.87mm ir 90deg 19mm long n rare earth - 2 PCS/PKG
MAGNET ARC 19MM OR 15.87MM IR 90DEG 19MM LONG N RARE EARTH PCS/PKG

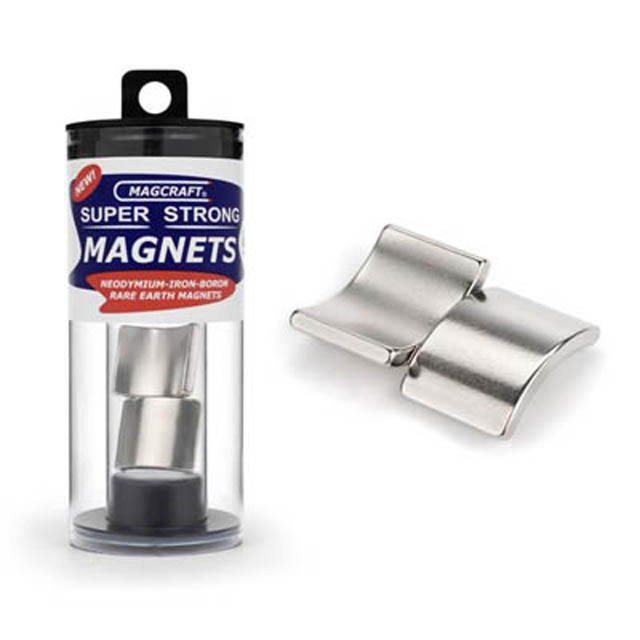

Image is for illustrative purposes only. Please refer to product description.

MAGNET ARC 19MM OR 15.87MM IR 90DEG 19MM LONG N RARE EARTH PCS/PKG - 2 PCS/PKG

Part#:NSN0628 Stock#: 3522-BA4-2 SKU: 230736
$21.95 $19.95 CAD
( 2 PCS/PKG )
Availability: 8 in stock
Stock and Aisle Location
# Store Qty Aisle
Burlington1
Cambridge2
Markham1
Mississauga1
Scarborough1
Vaughan2

Rare Earth Magnet - Arc, 0.75 in. Outside Radius x 0.625 in. Inside Radius x 90 Deg x 0.75 in Long, S
Part Number NSN0628 Imperial Dimensions 0.75 inch outside radius x 0.625 inch inside radius x 90 deg x 0.75 inch long Metric Dimensions 19.05 mm outside radius x 15.875 mm inside radius x 90 deg x 19.05 mm long Material Sintered Neodymium-Iron-Boron (NdFeB) Shape Arc Plating Ni-Cu-Ni (Nickel) Magnetization Direction Diameter Grade N40 Pull Force (lbs[g]) [0] Surface Field(G) 4551 Maximum Operating Temperature 80 Deg C (176 Deg F) Dimensional Tolerance +/-0.005" Magnet Quantity 2 Volume (cm3) 0 Weight (g) 8 Brand Magcraft Packaging Magpak Tube UPC 875661000283 Remanent Flux Density Br (kG [T]) 12.5-12.8 [1.25-1.28] Coercivity HcB (kOe [kA/m]) >=10.9 [>=867] Intrinsic Coercivity HcJ (kOe [kA/m]) >=12.0 [>=995] Maximum Energy Product Bhmax (MGOe [kJ/m3]) 38-41 [302-326] Density p(g/cm3) >=7.45 Compression Strength (Mpa) 600-1200 Bending Strength (Mpa) 150-380 Vickers Hardness (HV) 460-660 Recoil Permeability (urec) 1.05 Electrical Resistance (Ohm*mm2/m) 1.25-1.55 Curie Temperature Tc (C) 310 Thermal Expansion Coefficient 100C//(x10^-6/K) 6 Thermal Expansion Coefficient 100C?(x10^-6/K) -1
*Prices subject to change without notice. We reserve the right to limit quantities.
  • Part No
    NSN0628
  • Manufacturer
    MAGCRAFT
  • Stock No
    3522-BA4-2
  • SKU No
    230736

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
