Small and compact unit, ideal for panel mounting.
Give your homemade audio gear a high-tech look. Upgrade existing equipment.
measure:
Peak power
RMS power
Mean dB
peak dB
Linear audio spectrum

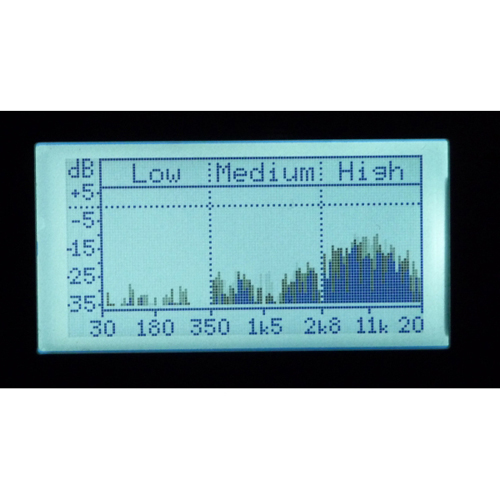

1/3 octave audio spectrum
auto or manual range selection
peak-hold function
speaker impedance selection
language selection
white backlit LCD
easy panel mounting
power measurement into 2, 4 or 8 ohms + bridged amp option
range: 300mW to 1200W @ 2 ohms
sensitivity: -34dBu (15.5 mVrms)
max. input level: 50Vrms @ 220k
frequency range: 20Hz to 20kHz
power supply: 12VDC / 75mA
dimensions:
display: 128 x 64 pixels (46 x 23mm / 1.8 x 0.90")
front panel: 98 x 51mm / 3.8 x 2"
mounting depth: 35mm / 1.37"
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
12+
-
Part No
WSAH8098
-
Manufacturer
Velleman
-
Stock No
2041-WF5
-
SKU No
236730
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
