While the motor turns you can simultaneously check the status of the dry-inputs (ex. emergency stop signal, limit detection...).
Use the switch inputs to test the motor.
Can be used in every application where positioning is needed
(for example, plotter, printer, valves, automations …).

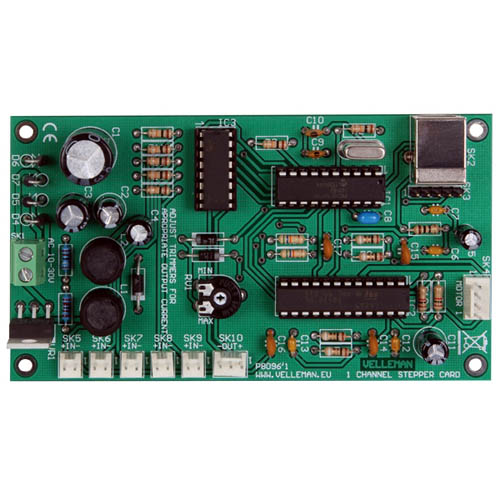

capable of driving 1 stepper motor
suited for bipolar motors
current of the motor can be adjusted (trimmer)
over current protection sensing
onboard switch mode supply
USB connection: control the motor using your computer
DLL file supplied to write your own software
includes board-to-wire connections
power output: 750 mA continuous, (1 A peak)
wide range AC - power input: 5 ... 30 V
5 dry-contact inputs
1 logic open collector output
power supply: 10 ... 30 VAC
dimensions: 117 x 65.5 x 25 mm / 4.6 x 2.58 x 0.98"
