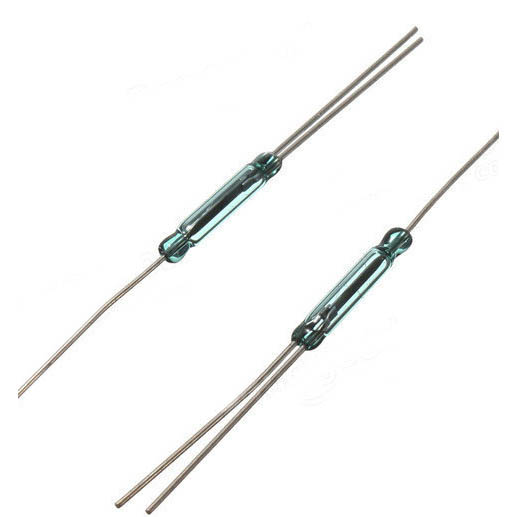

REED SWITCH 1P2T NO/NC 2X13MM GLASS AXIAL LEAD 0.5A@200V

Switching power(max) 5W DC switching voltage(max) 175V AC switching voltage(max) 125V DC switching current(max) 400mA AC switching current(max) 280mA Carry current DC, AC, effective value (max) 0.5A Breakdown voltage (minimum) 200V Contact resistance (initial maximum value) 140mW Contact resistance (initial typical value) 120mW Contact capacitance (max) 0.8pF Release time (max) 1ms (power on) Bounce time (max) 1.5ms (power on) Working time (max) 1ms (power on) Working range 10-30AT Total length 53mm Glass size 14x2.5mm

---

• Age

  0+

• Part No

  1088717

• Manufacturer

• Stock No

  SQR-2325

• SKU No

  250862

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
