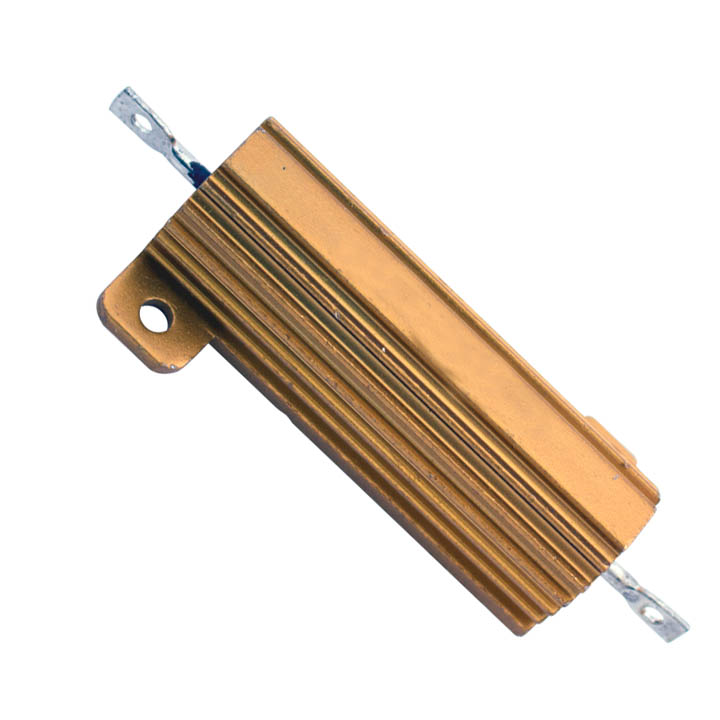

General Purpose High Power Precision Aluminum Housed Surface Mount Resistor,
Features:•Aluminum housing for maximum heat dissipation
•Complete welded construction
•50W tinned copper terminals
•50W threaded terminals
•Centerless ground steatite or alumina cores
•Molded epoxy body for heat transfer
•Non-inductive winding available (NKAL)
•Suitable for electrical component grade wash process and can be conformally coated or potted
•RoHS compliant, lead-free and halogen-free
1.968" long x 0.844 wide Body size
Length including Terminals is 2.781"
Full width including mounting bracket is 1.14"
Height is 0.61"
TCR (ppm/ºC) = ±50ppm
Dielectric WITHSTANDING Voltage = 3000vac
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
0+
-
Part No
UAL50-25RF8
-
Manufacturer
STACKPOLE
-
Stock No
RHM-25R-505
-
SKU No
254489
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
STACKPOLE UAL50-25RF8 Safety Data Sheet 1
