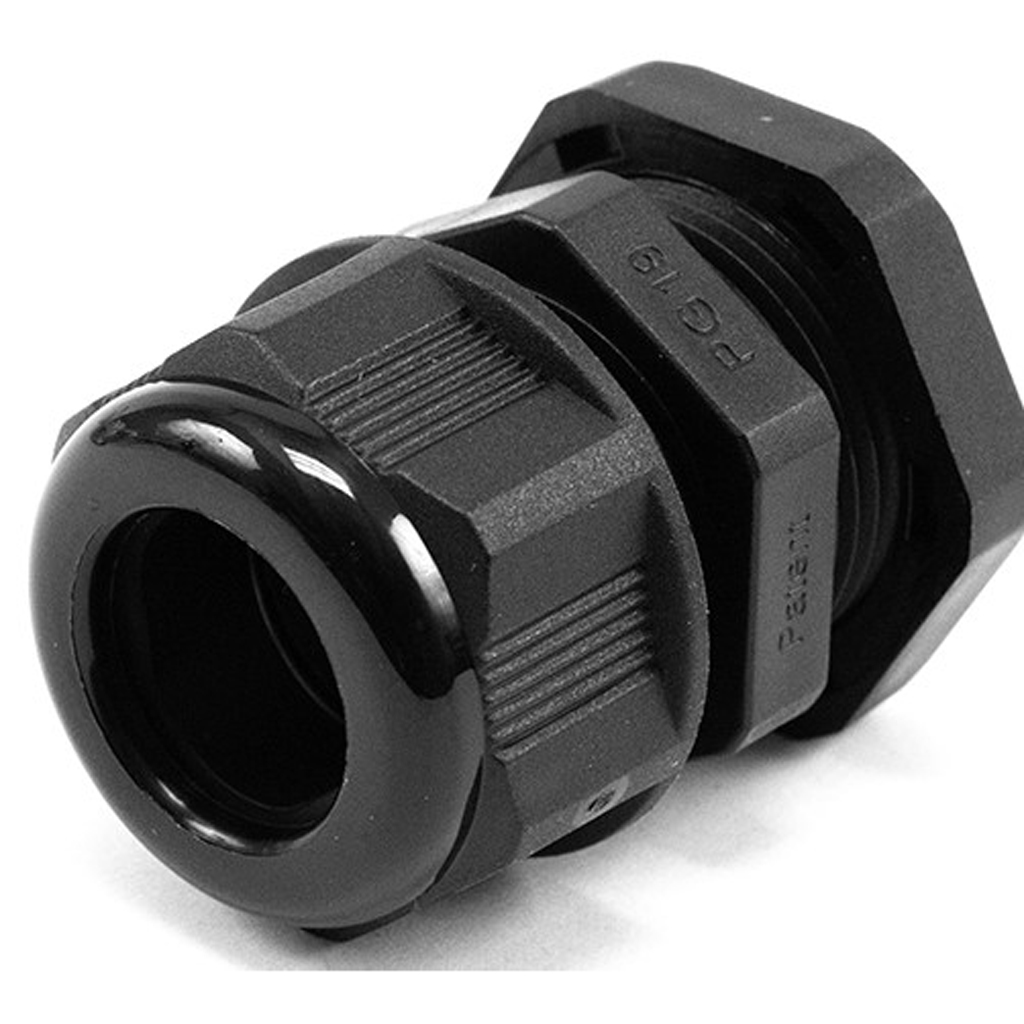

STRAIN RELIEF CORDGRIP PG19 24MM DIA 15MM WIRE NYLON BLK 42 LONG

• Liquid-tight cordgrip made from nylon
• Available in black (RAL 9005)

• Used where cable is entering or leaving an enclosure.
• Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
• The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
• Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
• Nylon locknut and EPDM o-ring included (as shown).
• Operating Temperatures:
  • Static state: -40°C to 100°C (up to 120° instantaneous)
  • Dynamic state: -20°C to 80°C (up to 100° instantaneous)
• Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 - Protection to IP68.
• UL94-V2 flammability rating.
• UL listed.

Material Nylon

Color Black

Thread Size (D) PG19

Mounting Hole Dia 24mm

Wire Diameter Min. 12 mm Max. 15 mm

Outer Length (L) 30 mm

Inner Length (T)  12 mm

• Age

  0+

• Part No

  1427NCGPG19B

• Manufacturer

  HAMMOND MANUFACTURING LTD.

• Stock No

  KEHJ-2355

• SKU No

  255227

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
