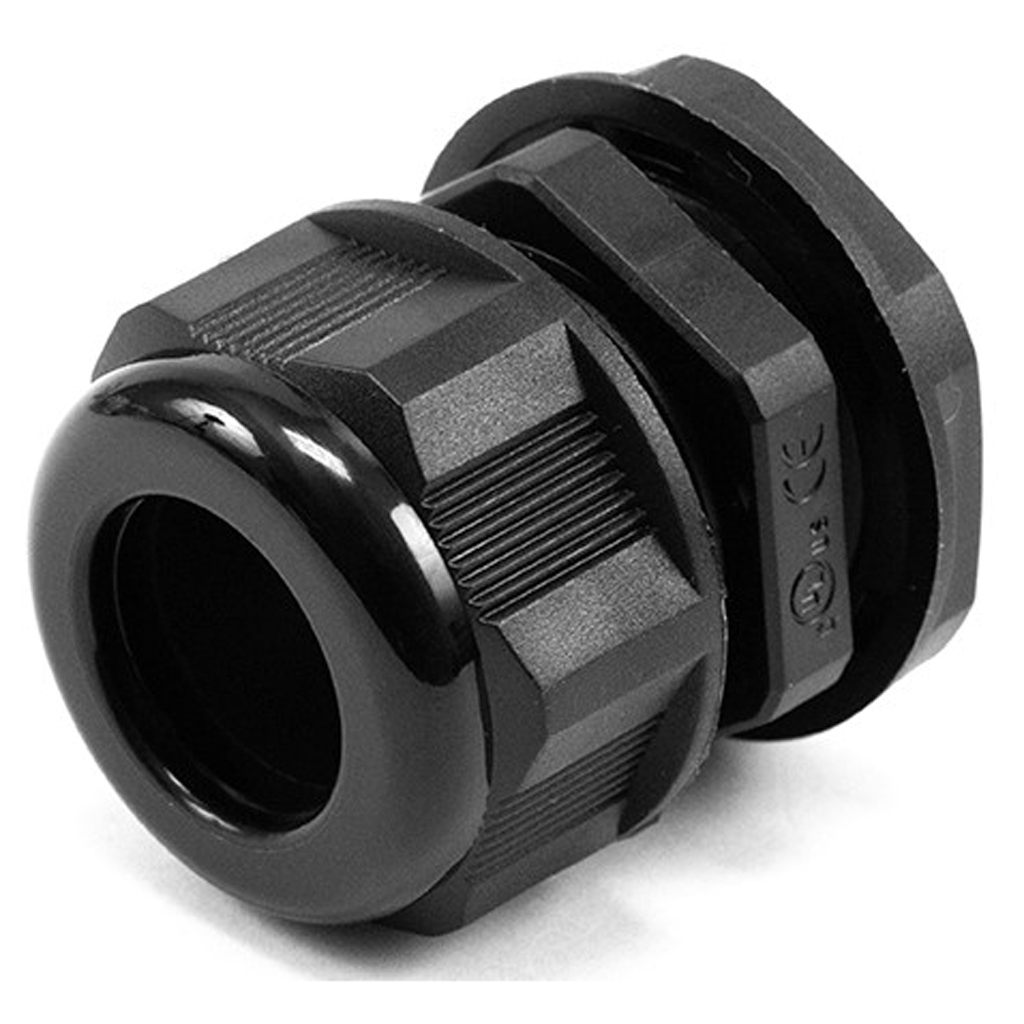

STRAIN RELIEF CORDGRIP PG21 29MM DIA 18MM WIRE NYLON BLK 42 LONG

• Liquid-tight cordgrip made from nylon
• Available in black (RAL 9005)
• Used where cable is entering or leaving an enclosure.
• Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
• The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
• Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
• Nylon locknut and EPDM o-ring included (as shown).
• Operating Temperatures:
  • Static state: -40°C to 100°C (up to 120° instantaneous)
  • Dynamic state: -20°C to 80°C (up to 100° instantaneous)
• Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 - Protection to IP68.
• UL94-V2 flammability rating.
• UL listed.

Material Nylon

Color Black

Thread Size (D) PG21

Mounting Hole Dia 29mm

Wire Diameter Min. 13 mm Max.18 mm

Outer Length (L) 31 mm

Inner Length (T) 11mm

• Age

  0+

• Part No

  1427NCGPG21B

• Manufacturer

  HAMMOND MANUFACTURING LTD.

• Stock No

  KEHJ-2664

• SKU No

  255228
