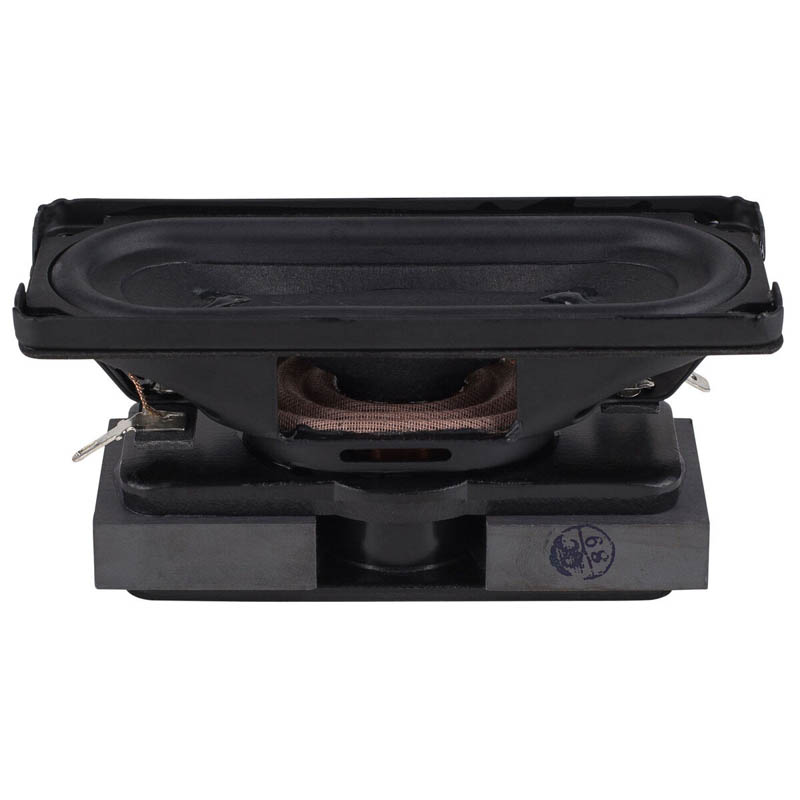

Peerless TC2X4FB00-08 1-3/4" x 4" Rectangle Full-Range Woofer 8 Ohm
This Peerless TC family 1.75" x 4" inch 8 ohm rectangle woofer with a dual staggered magnet, paper cone, rubber surround, and steel basket, is designed to be a cost-effective high performance small woofer for use in slim speaker designs. The motor contains an aluminum ring to lower inductance and distortion. Designed with television and other special compact applications in mind, the TC2X4FB00-08 in one unique driver.
Nominal Diameter: 2-1/2" x 4"Power Handling (RMS): 10W
Power Handling (max): 20W
Impedance: 8 OHMS
Frequency Response: 60 to 1,000Hz
Sensitivity: 80.2 dB 2.83V/1m
Voice Coil Diameter: 0.64"
Resonant Frequency (Fs): 85 Hz
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le):0.62 mH
Mechanical Q (Qms): 7.65
Electromagnetic Q (Qes): 0.88
Total Q (Qts): 0.79
-
Part No
TC2X4FB00-08
-
Manufacturer
TYMPHANY
-
Stock No
ATAS-2401
-
SKU No
257752
