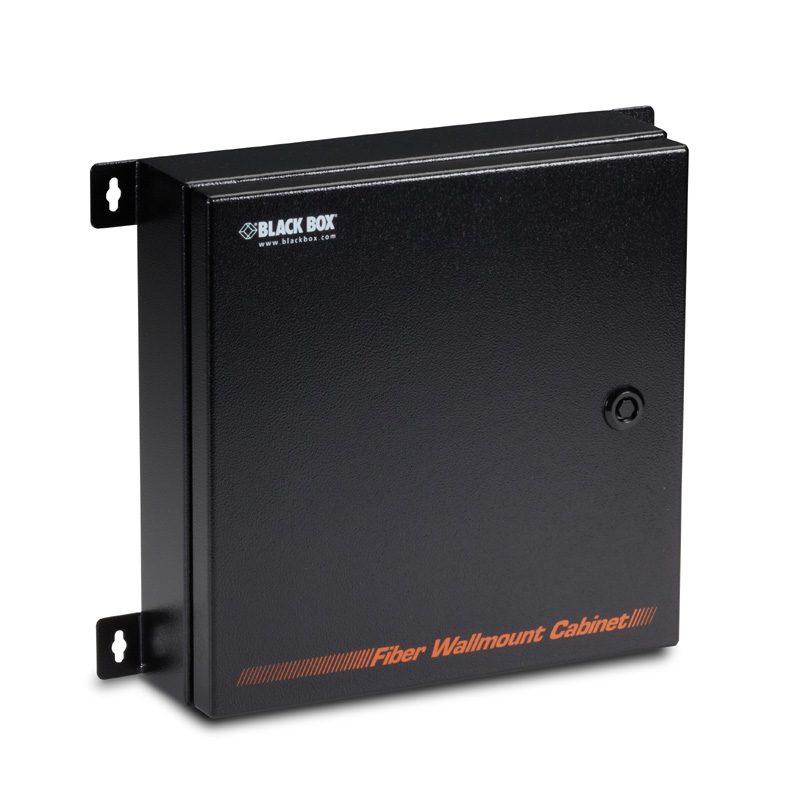

The NEMA-rated Fiber Splice Tray Wallmount Enclosure enables multiple fiber splicing in a NEMA-rated enclosure. Use it to make fiber cabling transition from outside fiber to indoor fiber cabling. This enclosure is a fully-sealed wallmounted box that can support up to 48 fiber splices using two larger fiber splice trays ([1] JPM440A splice tray is already included). Bulk fiber cabling enters and
exits the enclosure through a pair of water-tight grommets. The grommets can be adjusted to support bulk fiber cabling from 8-mm up to 17-mm. Inside is a pair of Kevlar ® clamps to secure bulk fiber cabling to the enclosure. There is ample room inside the enclosure for cabling management as well as identifying the fiber strands.
What’s Included
• (1) NEMA Rated Enclosure
• (1) DANGER sticker
• (4) 4-inch cable ties
• (4) mounting screws
• (2) grommet plugs
• (2) grommets – 8-mm to 17-mm (Using smaller Outside Diameter [OD] size)
• (6) 1-inch cable organizers
• (30) 3-inch cable ties
• (1) Splice Tray (part number JPM440A)
• (1) set of ID markers – [1][2][3][4]
• This user’s manual
• (1) cutout wall template
• (1) ratchet key
• (1) fiber adapter panel ID enclosure sticker
-
Part No
JPM4002A
-
Manufacturer
BLACK BOX
-
Stock No
AHWT-8731
-
SKU No
264814
