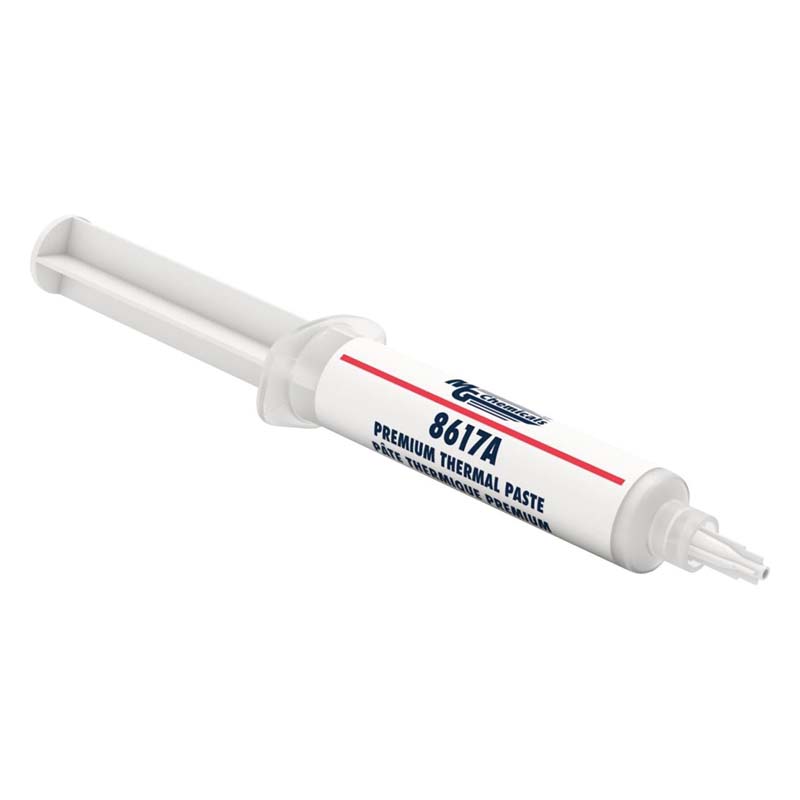

8617A silicone-free thermal grease is a heat sink grease with very high thermal conductivity and exceptional wetting properties. The thixotropic consistency helps ensure the paste conforms to the intricate geometry at the component/heatsink interface while avoiding bleed and pump out common with other pastes. 8617A has a wide operating temperature range, making it a practical solution where high heat dissipation and thermal cycling stability are needed. Once applied, circuits can be powered up immediately offering exceptional convenience.
This thermal paste is most often used as a gap filler on heatsinks to CPUs, LEDs, and other electronic components. Its high thermal conductivity makes it ideal for energy-intensive devices like thermal sensors, IGBTs, thermal wells and power resistors.
The paste’s soft consistency allows easy compression to achieve thin bond lines, minimizing thermal resistance.
For applications demanding higher thermal conductivity, we have the 8618 whereas our 8616 and 860 is suited for applications requiring less heat dissipation. We also have a full line of thermally conductive adhesives which provide a permanent bond and thermal gels which offer tack adhesion where a low modulus material is needed.
Thermal conductivity of 3 W/(m·K)
1-component compound
Silicone-free, will not contaminate surfaces
Wide operating temperature, ideal for aggressive thermal cycling conditions
Low bond line thickness
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
0+
-
Part No
8617A-10ML
-
Manufacturer
MG CHEMICALS
-
Stock No
QPN-3220
-
SKU No
266333
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
MG CHEMICALS 8617A-10ML Safety Data Sheet 1
