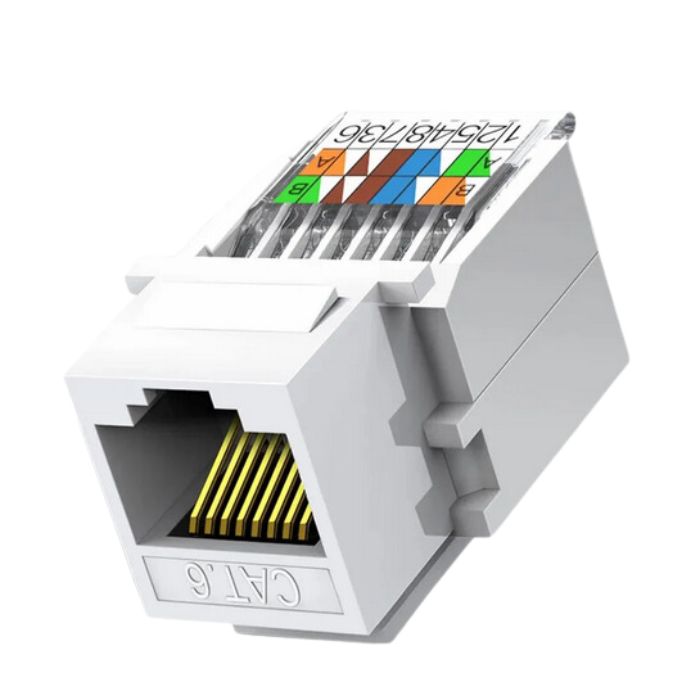

Cat6 Cat5e Tool-Less RJ45 Keystone Jack, No Punch-Down Tool Required, White
✅Easy To Use: This toolless UTP CAT6 keystone Jack is a female RJ45 connector for networking; Simply insert the leads following the color coding, and press down the clear cover.
✅High Performance: Meet Category 6 performance in compliance with the ANSI/TIA/EIA 568-C.2 standard and support PoE. Compatible with 23 to 26 AWG solid and stranded copper conductors.
✅High Durability: Made with 50μ gold plated connector and full copper conductor, Prevent corrosion over time; Features a dust-proof shutter to ensure signal transmission.
✅Applications: The Jack is compatible with a wide range of patch panels, surface mount boxes, or wall plates (face plates). It is quite versatile that can be mounted with different type of keystones on a same plate.
1. Working temperature range: -10C-+60C.
Electrical characteristics:
2.1 Voltage/current specification: 125V AC 1.25A (25C).
2.2 Withstand voltage 700V DC/MIN without breakdown.
2.3 Insulation resistance: 500MQ
2.4 Contact positive resistance: <0.03
3. Mechanical properties:
3.1 Insertion force: insertion force 20N: extraction force 20N.
3.2 IDC terminal: Phosphor bronze, the applicable wire diameter is 22-26AWG, and the repeatable times of clamping are not small
200 times.
3.3 PIN gold pin: Phosphor bronze is gold-plated, and the plug and socket can be re-plugged no less than 750 times.
4. Environmental requirements:
4.1 The product complies with ROHS, REACH, and other environmental protection standards.
Cat6
