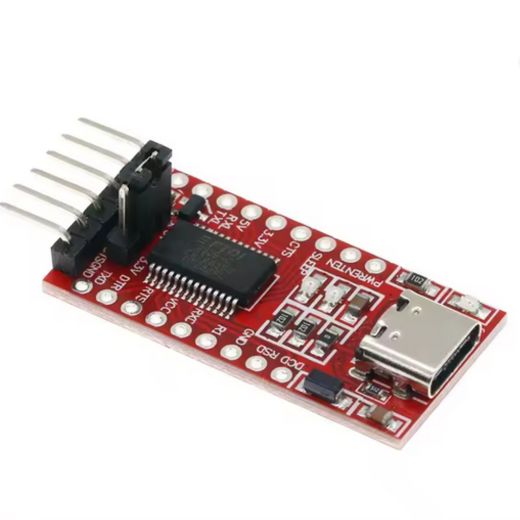

Ftdi Breakout Board 3.3 Or 5v Ft232rl C-type Ttl Serial Module

Part#: Stock#: 1815-BB2 SKU: 270120

$19.95 CAD

Availability

13 in stock

Stock and Aisle Location

Store	Qty	Aisle
Burlington	2
Markham	2
Mississauga	4
Scarborough	3
Vaughan	2

FTDI TTL Module FT232RL Serial Converter FTDI USB To TTL Converter Adapters 5V 3.3V USB To Serial Converter FT232 FTDI Module 6 Pin Header

This USB to TTL serial adapter is ideal for many uses, including: programming microprocessors such as ARM, AVR; working with computing hardware like routers and switches; serial communication with many devices including GPS devices or serial terminals on devices like Raspberry Pi.

Unlike most USB to TTL serial adapters, this adapter supports both 5V and 3.3V operation! Simply set the jumper as required to choose between 5V and 3.3V as labelled on the board.

The FTDI adapter comes with a fitted right-angle connector allowing you to use it straight away. If you need to access any of the other inputs or outputs of the FT232RL, all the useful signals are provided as through-hole solder pads – ideal for use with straight headers into a breadboard, for example.

Features:

Product performance: Standard interface , compatible with a variety of For Official Controller OriginalFT232Chip, stable performance With power , sending, receiving indicator , working status Have 3.3V And 5V Power supply options Do ordinary USB Serial TTL Modules, download STCSCM
Introduction FT23R
With the development of computer technology , parallel and serial ports on the PC slowly disappeared , and now even the parallel port of the desktop are rare . But for engineers, parallel and serial interfaces are essential , especially in the serial . For computers without serial ports , the most convenient solution is to use USB to serial chip to virtual serial port out , many manufacturers have produced such a chip , such as silicon LABS of CP210x series , TI ‘s TUSB3410, Nanjing Qin Heng CH34x series, FTDI’s FT232 series , Prolific ‘s PL230x series, Echo ‘s ARK3116 so on. From the stability point of view, the most reliable or FT232 series , you can use it to ease the debugging process without fear of a blue screen appears.
FT232R chip is a single-chip solution , generally do not need to use basic peripherals , and even crystal , USB matching resistor , place the product information have been integrated in the internal EEPROM of the . FT232R There are some more useful features, details can be found FT232R data sheet .
Datasheet Download : www.ftdichip.com/Products/ICs/FT232R.htm
Introduction: hardware
using FTDI FT232RL chip companies ;
FT232RL chip lead all the signal port , TTL / CMOS level ;
RXD / TXD Transceiver Communications LED ;
USB -powered, 5V or 3.3V
