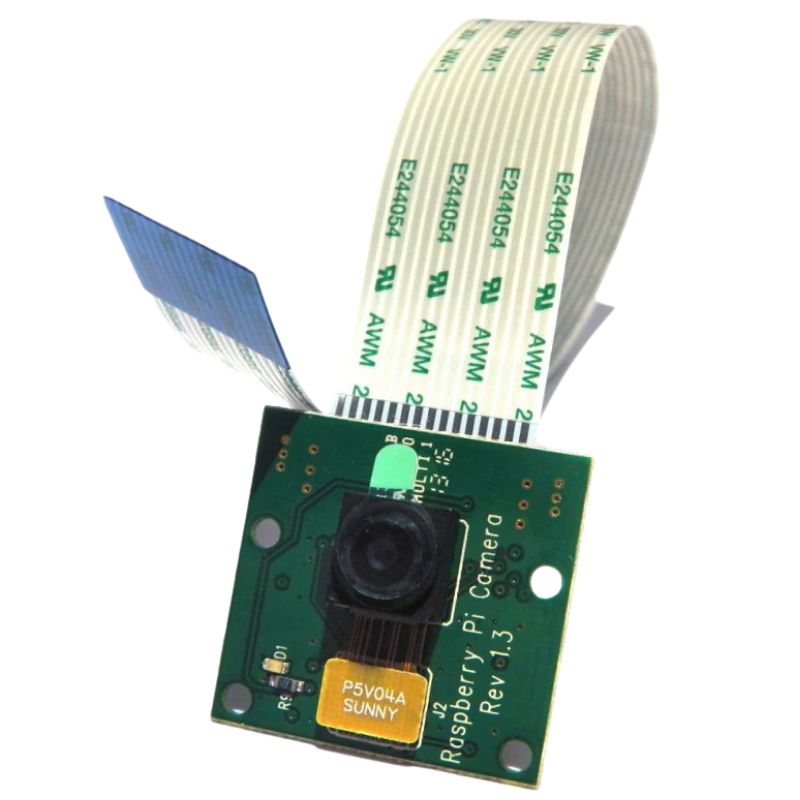

The Raspberry Pi Camera Board plugs directly into the CSI connector on the Raspberry Pi. It's able to deliver a crystal clear 5MP resolution image, or 1080p HD video recording at 30fps! Latest Version 1.3! Custom designed and manufactured by the Raspberry Pi Foundation in the UK, the Raspberry Pi Camera Board features a 5MP (2592?1944 pixels) Omnivision 5647 sensor in a fixed focus module. The module attaches to Raspberry Pi, by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor. The board itself is tiny, at around 25mm x 20mm x 9mm, and weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video recording. The camera is supported in the latest version of Raspbian, the Raspberry Pi's preferred operating system. The Raspberry Pi Camera Board Features:
Fully Compatible with Both the Model A and Model B Raspberry Pi
5MP Omnivision 5647 Camera Module
Still Picture Resolution: 2592 x 1944
Video: Supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 Recording
15-pin MIPI Camera Serial Interface - Plugs Directly into the Raspberry Pi Board
Size: 20 x 25 x 9mm
Weight 3g
Fully Compatible with many Raspberry Pi cases
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
RASPC-003002
-
Manufacturer
-
Stock No
1821-QA9
-
SKU No
270621
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
