Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×41mm, 5.7V, 1 A/Phase

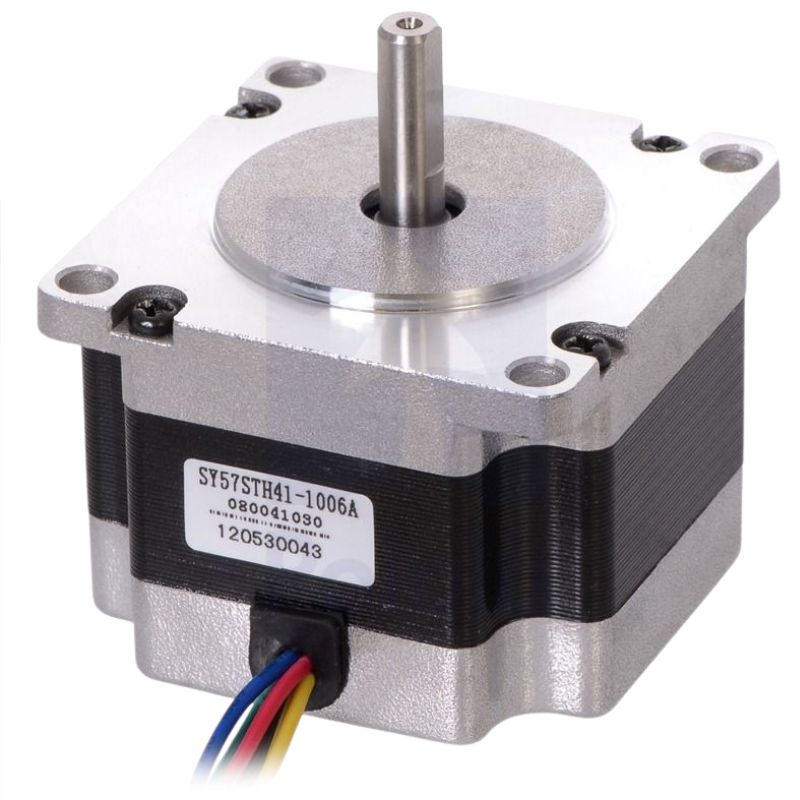

This NEMA 23-size hybrid stepping motor can be used as a unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 5.7 V, allowing for a holding torque of 4 kg-cm (55 oz-in).
This high-torque hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 5.7 V, allowing for a holding torque of 4 kg-cm (55 oz-in). The motor has six color-coded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the center-tap yellow and white wires can be left disconnected (the red-blue pair gives access to one coil and the black-green pair gives access to the other coil). We recommend using it as a bipolar stepper motor and controlling it with one of our bipolar stepper motor drivers or one of our Tic Stepper Motor Controllers. In particular, the Tics make control easy because they support six different interfaces (USB, TTL serial, I²C, RC, analog voltages, and quadrature encoder) and are configurable over USB with our free configuration utility.
Size: 56.4 mm square × 41 mm, not including the shaft (NEMA 23)
Weight: 450 g (16 oz)
Shaft diameter: 6.35 mm (0.25″) “D”
Steps per revolution: 200
Current rating: 1 A per coil
Voltage rating: 5.7 V
Resistance: 5.7 Ω per coil
Holding torque: 4 kg-cm (55 oz-in)
Inductance: 5.4 mH per coil
Lead length: 30 cm (12″)
Output shaft supported by two ball bearings
