Liquid Flow Meter 1-30l/min 1.75mpa Max.
LIQUID FLOW METER 1-30L/MIN 1.75MPA MAX.

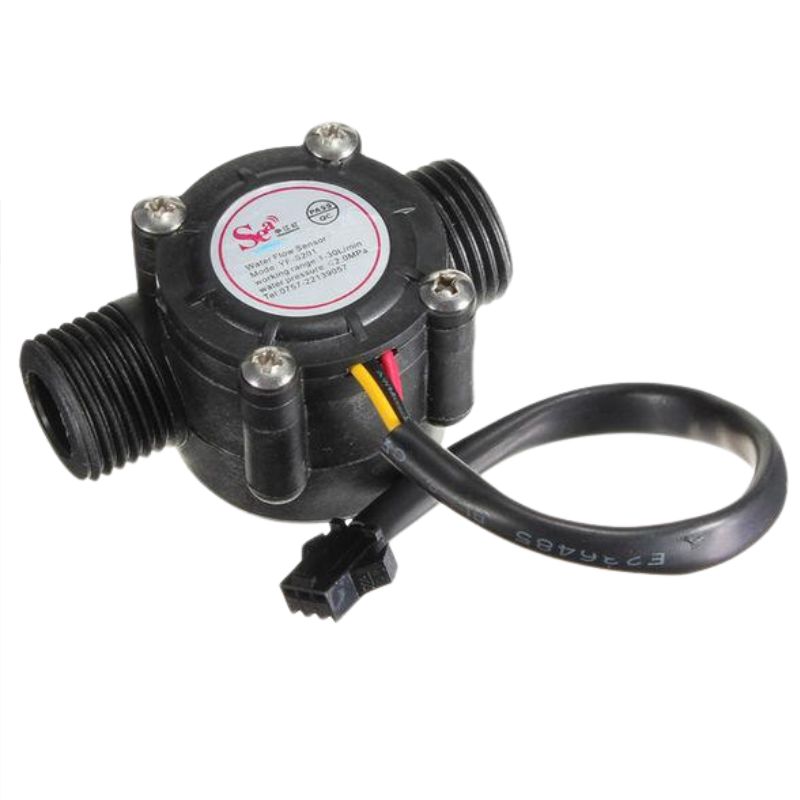

Image is for illustrative purposes only. Please refer to product description.
Share

Liquid Flow Meter 1-30l/min 1.75mpa Max.

Part#:YF-S201 Stock#: MZM-102 SKU: 270857
$9.95 CAD
Availability 19 in stock

Stock and Aisle Location
Store Qty Aisle
Warehouse 19
This type of flow sensor is used to measure liquid flow within a pipe and is ideally suited for monitoring water consumption in irrigation control systems. Each side of the sensor has a 1/2″ NPS nominal pipe connections, 0.78″ outer diameter, 1/2″ of thread. The sensor is connected by way of a 3 pin connector. Inside the housing, a small pinwheel with an attached magnet is spun by passing water; as the magnet makes each revolution, a hall effect sensor inside the housing outputs a pulse on the yellow wire. Each pulse output represents approximately 2.25mL of fluid. The sensor is best suited to flow rates between 1 and 30 liters per minute – flow rates below one liter per minute tend not to register accurately.
Working Voltage: 3.5 to 24VDC Max current draw: 15mA @ 5V Working Flow Rate: 1 to 30 Liters/Minute Working Temperature range: 1°C to 80°C Maximum water pressure: 1.75 MPa Output duty cycle: 50% +-10% Output rise time: 0.04us Output fall time: 0.18us Durability: minimum 300,000 cycles Pulses per Liter: 450
*Prices subject to change without notice. We reserve the right to limit quantities.
  • Part No
    YF-S201
  • Manufacturer
  • Stock No
    MZM-102
  • SKU No
    270857

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
