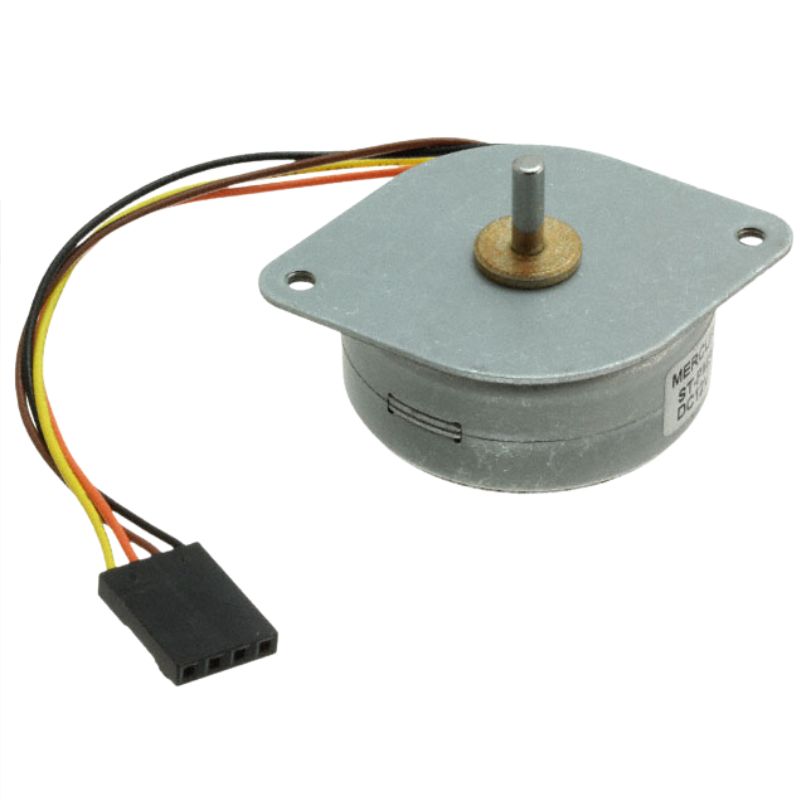

The ST-PM35-15-11C is a small stepper motor with a 7.5° step angle, a 12V rated voltage, and a 400mA rated current. It has a 3mm diameter drive shaft and a 4-wire cable attached. The in-traction torque of the motor is 100 g/cm.
Type: Permanent Magnet
Coil Type: Bipolar
Voltage - Rated: 12VDC
Current Rating (Amps): 400 mA
Steps per Revolution: 48.0
Step Angle: 7.5°
Size / Dimension: Round - 1.378" Dia (35.00mm)
Diameter - Shaft: 0.118" (3.00mm)
Length - Shaft and Bearing: 0.492" (12.50mm)
Mounting Hole Spacing: 1.650" (42.00mm)
Termination Style: Wire Leads with Connector
Coil Resistance: 4 Ohms
Features: Round Shaft
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
ST-PM35-15-11C
-
Manufacturer
-
Stock No
2621-JA5
-
SKU No
270903
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
