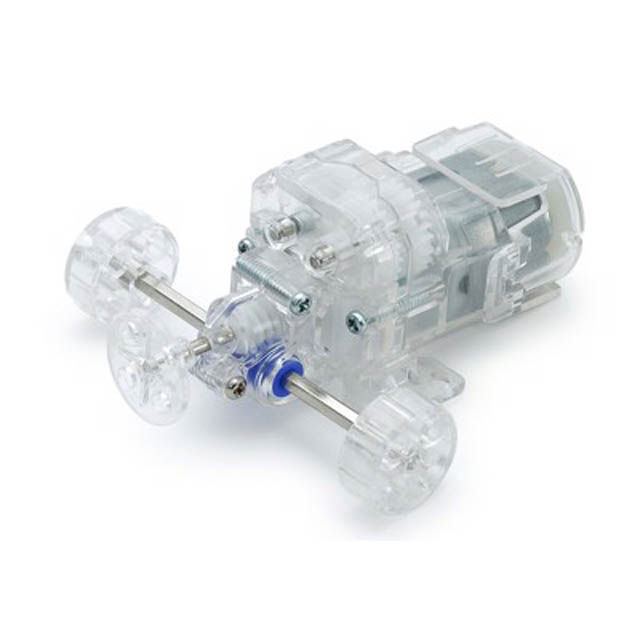

The Universal Gearbox 2 is a new updated version of Item 70103 Universal Gearbox. This version features a clear ABS plastic gear case, motor cover, gear cover with some gears also in clear ABS plastic. This ensures the visibility of internal mechanisms. This assembly type gearbox has two output shafts which provide independent motion (2mm shaft for front output and 3mm hex shaft for right and left output). Removable mounts can be attached on any side of the gearbox to change output direction. With item 70103, output direction can only be changed by altering screw attachment positions. Two included mounts also allow attachment. The clutch mechanism alleviates stress when heavy load such as motor lock occurs. Some gear ratios have been slightly changed compared to item 70103 such ast the 3mm hex shafts repositioning so that it does not obstruct the universal plate. Includes crank plates which are compatible with 3mm hex shaft and 2mm shaft
-
Part No
70260
-
Manufacturer
TAMIYA
-
Stock No
2671-EB2
-
SKU No
272950
