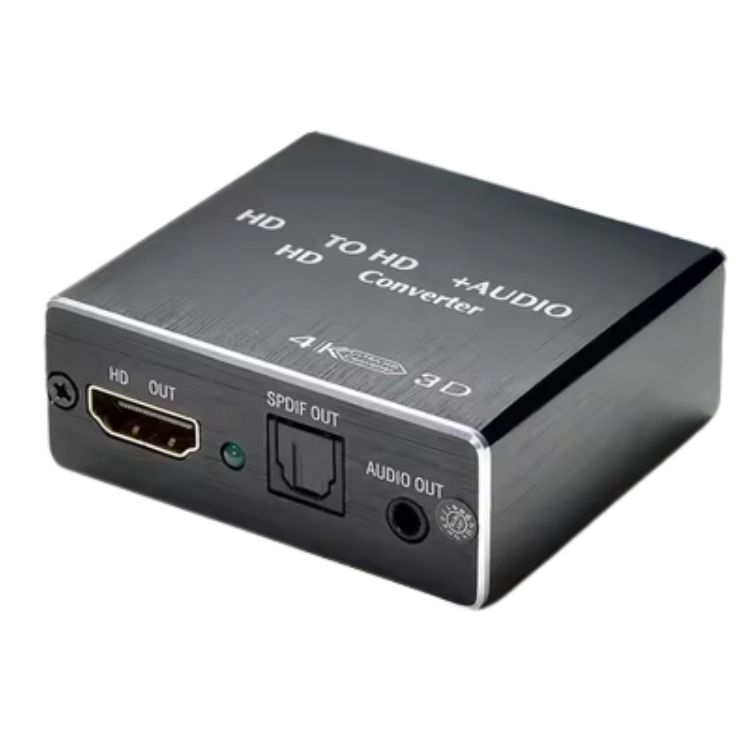

HDMI-Compatible Audio Extractor Stereo Audio Converter 3.5mm 4k X 2k Audio Splitter Adapter
This is a high-performance, multi-functional HD audio extractor, this extractor can extract the audio signal among the HDMI-compatible signal to the power amplifier system to obtain high-quality audio effects which is hard for TV speakers to achieve.
Description:
This HDMI-compatible audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI-compatiblesource.
It can extract the digital audio signal embedded in HDMI-compatiblesource and convert it through 3.5mm L/R analog output and SPDIF output at the same time.
The RCA L/R and SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH(NOT support Dolby Digital Plus)
Three switching audio EDID settings:
Pass: HDMI-compatiblepass mode. The audio and video can be convertered from the HDMI-compatibleoutput. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI-compatibleinput and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.
Features:
* Convert 1 HDMI-compatibleInput to 1 HDMI-compatible+ 1 Audio (SPDIF) Output+ 3.5mm Analog Audio Output
*Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.
*HDMI-compatibleto achieve the synchronization of audio signal separation. *There are PASS/ 2.0CH/ 5.1CH three kinds of audio mode options.
*LED clearly indicate the working state of the Extractor.
Specifications:
HDCP Version...........................................HDCP1.4
HDMI-compatibleVersion...........................................HDMI-compatible1.4b
HDMI-compatibleresolution................................2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support Video Color Format.........24bits/deep color 30bit,36bit
Audio Output...........................SPDIF+3.5mm Audio
Max Bandwidth...........................................340MHz
Max Baud Rate.........................................10.2Gbps
Input/ Output TMDS signal.....0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal.................5Volts p-p(TTL)
Input Cable Distance...........................<=7m AWG26 standard cable HDMI-compatible
Output cable distance........................<=8m AWG26 standard cable HDMI-compatible
Max Working Current....................................500mA
Working Voltage......................................DC +5V
Operating temperature range............(-15 to +55°C)
Operating humidity range...........................5 to 90% RH(NO Condensation)
Dimension (LxWxH)..................58 x 53 x 21.9(mm)
Package Included:
1 X HDMI-compatibleaudio extractor
1 x micro USB cable
1 X User Manual
Notes:
Does not support Dolby Digital Plus audio. It supports DTS audio and Dolby Digital audio.
For devices with low power HDMI-compatibleports, a 5V / 1A telephone adapter can be used to connect the .
does not support copyright protected content.
-
Part No
-
Manufacturer
-
Stock No
ARWC-3295
-
SKU No
273325
