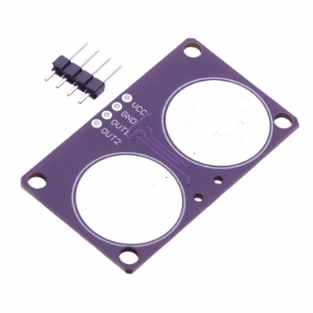

Dual-button touch sensor module household capacitive touch proximity sensor key switch panel about 0-5mm suitable for arduino
Double Button Touch Detection Capacitive Proximity Sensor Distance 0-5mm Capacitive Touch Sensor Module DC 3.3-5V
Feature:
1. Easy Installation for Multiple Scenarios: Enjoy the convenience of easy installation with this double button touch detection. It is designed to be versatile and can be used in various scenarios, making it suitable for a wide range of applications.
2. Dual-Sided Touch Capability: This touch switch module allows for touch detection on both sides, providing flexibility in how it can be interacted with. Whether you need to activate it from the front or back, it offers a seamless user experience.
3. Electric Touch Activation: With its electric touch activation feature, this capacitive proximity sensor ensures smooth and responsive performance. Simply touch the buttons to trigger the desired action effortlessly.
4. Enhanced Convenience: Unlike traditional press buttons, this dual button touch module offers a more convenient alternative. The touch-based operation eliminates the need for physical force, making it easier and more comfortable to use.
5. Compact and User-Friendly Design: Designed with a compact form factor, this capacitive touch sensor module is space-saving and aesthetically pleasing. Its user-friendly design allows for intuitive and hassle-free operation.
Specification:
Output: Switching Transducer
Model Number: Double Button Touch Detection
Theory: Capacitance Sensor
1. The module is a touch switch module based on touch detection IC (CT8224-3).
2. Under normal condition, the module outputs a low level; when touching the corresponding position with a finger, the module will output a high level.
3. The module can be installed on the surface of non-metallic materials such as plastic and glass, and in addition, a thin piece of paper (non-metallic) will be covered on the surface of the module.
4. As long as the touch is in the right place, it can be made into a keypad on the wall, desktop, etc.
5.The module can make you free from the trouble of regular press type keys.
The module features are as follows:
Tap type: initial state is low level, touch is high level, do not touch is low level.
Power supply can be 3.3~5.0V DC
Power indicator is on the upper left side
Touch the two touch screens, the two indicators below the module will light red
Both front and back sides can be used as touch surface, which can replace the traditional light touch buttons.
4 M2 screw positioning holes for easy installation.
Product size: 44x26x2mm/1.73x1.02x0.08inch
pcb board hole diameter: 3mm
Hole spacing: 39x20mm/1.54x0.79inch
-
Part No
-
Manufacturer
-
Stock No
1814-MA2A
-
SKU No
274184
