Feather is the flagship development board from Adafruit, and like its namesake it is thin, light, and lets you fly! Feather was designed to be a new standard for portable microcontroller cores.

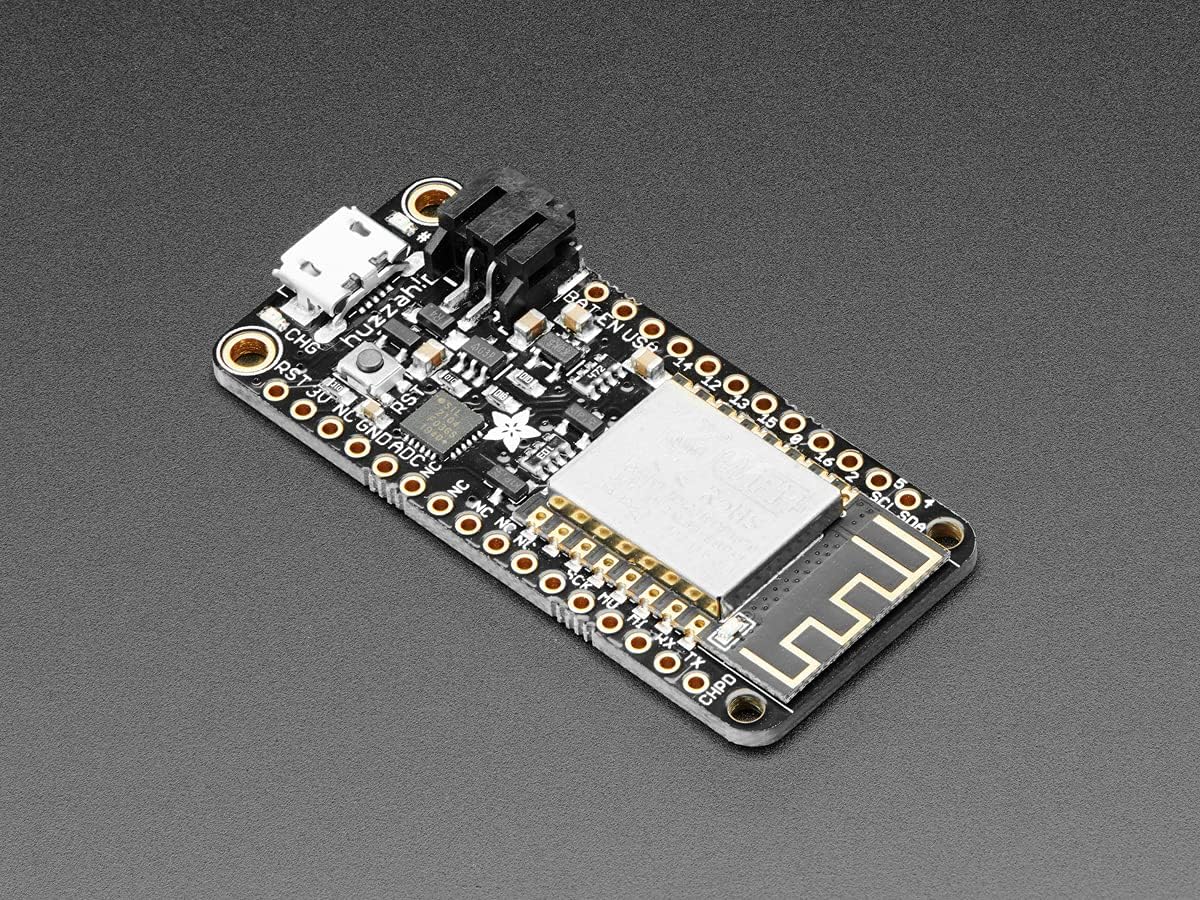

This is the Assembled Adafruit Feather HUZZAH ESP8266 (Headers not included) - Adafruit's take on an 'all-in-one' ESP8266 WiFi development board with built in USB and battery charging and ready to go immediately! Its an ESP8266 WiFi module with all the extras you need, ready to rock!
At the Feather HUZZAH's heart is an ESP8266 WiFi microcontroller clocked at 80 MHz and at 3.3V logic. This microcontroller contains a Tensilica chip core as well as a full WiFi stack. You can program the microcontroller using the Arduino IDE for an easy-to-run Internet of Things core. The USB-Serial chip is wired up for an upload code at a blistering 921600 baud for fast development time. It also has auto-reset so no noodling with pins and reset button pressings.
To make it easy to use for portable projects, there's a connector for any 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available.
Here's some handy specs!
Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in
Light as a (large?) feather - 9.7 grams
ESP8266 @ 80MHz with 3.3V logic/power
4MB of FLASH (32 MBit)
Built in WiFi 802.11 b/g/n
3.3V regulator with 500mA peak current output
CP2104 USB-Serial converter onboard with 921600 max baudrate for uploading
Auto-reset support for getting into bootload mode before firmware upload
9 x GPIO pins - can also be used as I2C and SPI
1 x analog inputs 1.0V max
Built in 100mA LiPoly charger with charging status indicator LED, can also cut a trace to disable the charger
Pin #0 red LED for general purpose blinking. Pin #2 blue LED for bootloading debug & general purpose blinking
Power/enable pin
4 mounting holes
Reset button
-
Part No
2821
-
Manufacturer
ADAFRUIT INDUSTRIES
-
Stock No
1815-MA11
-
SKU No
274474
