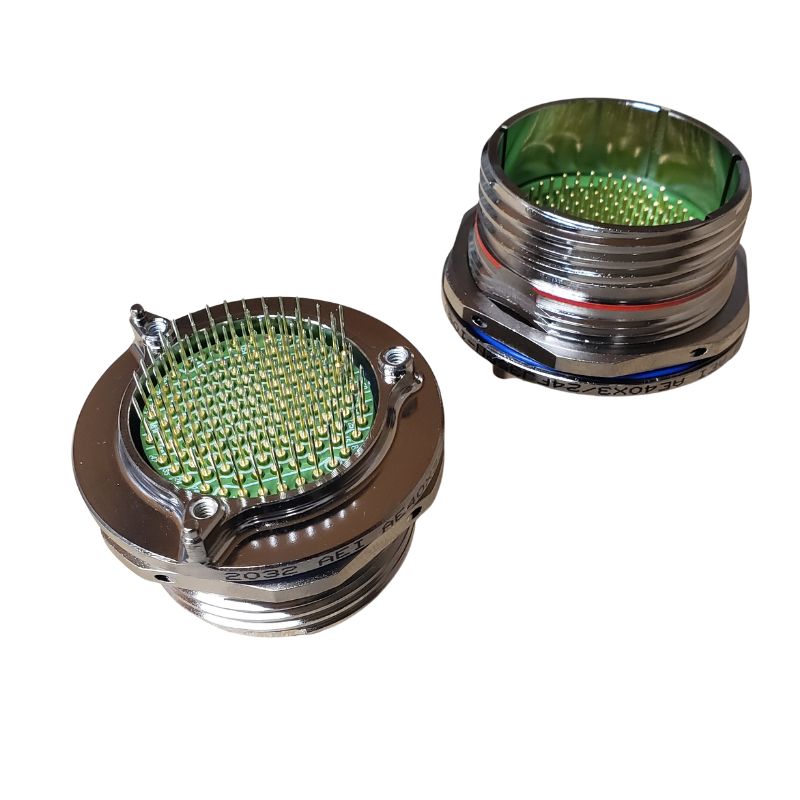

The Air Electro AE40X3/24FJ35PN-105T is a high-density circular jam-nut receptacle from the AE40 connector family. It is based on the MIL-DTL-38999 Series III form factor and is designed for direct printed circuit board mounting in demanding aerospace, defence, industrial, instrumentation, and transportation systems.
This connector provides 128 fixed male PCB-tail contacts in the 25-35 insert arrangement. Its jam-nut design enables secure panel or bulkhead mounting, while the threaded Series III-style coupling provides a reliable mating interface.
The aluminum shell has an electroless nickel finish, and the contacts are gold plated over nickel. The N keying position provides the standard or normal insert orientation.
• High-density 128-position circular connector
• Jam-nut panel or bulkhead receptacle
• Fixed straight PCB-tail contacts
• Male pin contact configuration
• Size 22D contacts
• Shell size 25, military designation J
• Insert arrangement 25-35
• Normal N keying position
• Electroless-nickel-plated aluminum shell
• Gold-over-nickel contact finish
• Threaded MIL-DTL-38999 Series III-type interface
• Intended for high-reliability electronic systems
-
Part No
AE40X3/24FJ35PN-105
-
Manufacturer
AIR ELECTRO INC.
-
Stock No
SQ22575
-
SKU No
275314
