TXFR 16VCT 3A IP115V CHMT
Part No: 166M16
Manufacturer: HAMMOND MANUFACTURING LTD.
Stock No: JRB-6674-1
SKU No: 174669
Stock Number: JRB-6674-1    $45.95
TRANSFORMER POWER 10-22V 6356

Image is for illustrative purposes only. Please refer to product description.

$45.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington2
Markham2
Mississauga1
Features
  • Economical single primary 115 VAC, 60 Hz. (or 117 50/60 Hz. see table) - (If you require117/234 or 50/60 Hz. operation or dual secondaries check out our versatile 266 Series.

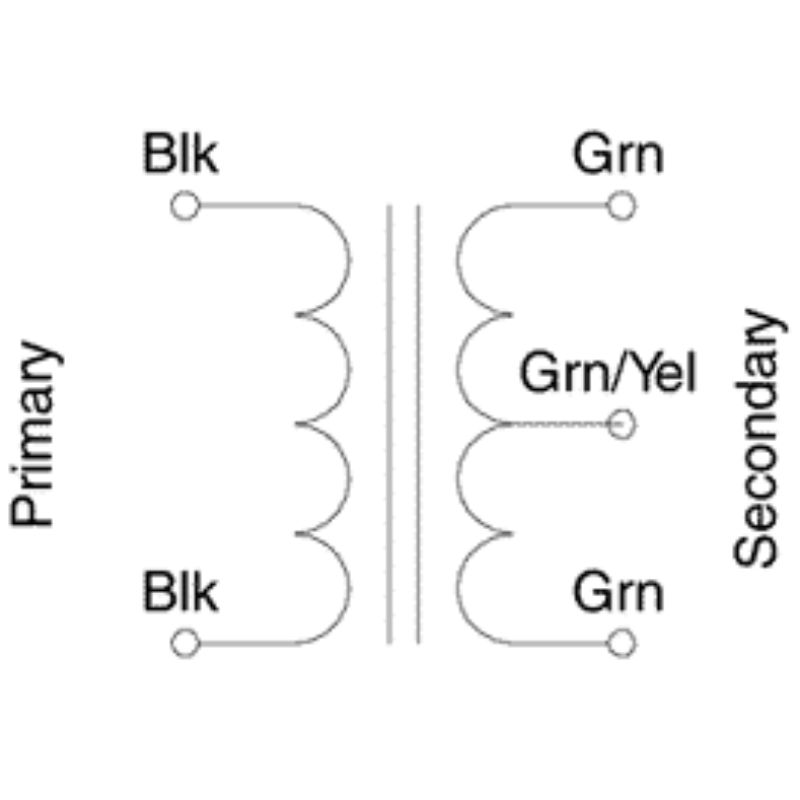

  • Most secondaries are center tapped (C.T.), VAC (RMS)
  • Open style, channel bracket, two hole chassis mount.
  • Minimum 6" long leads.
  • Dual bobbin design - no electrostatic shield required.
  • We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
  • Hi-Pot test of 2,000V RMS.
  • UL listed.
  • CSA certified
