TXFR 24VCT 5.4A OR 12V 10.8A CHMT IP115/230V

Part No: 185F24

Manufacturer: HAMMOND MANUFACTURING LTD.

Stock No: JRC-1739

SKU No: 174675

Stock Number: JRC-1739 $72.95

TRANSFORMER POWER 24-36V 6350

Image is for illustrative purposes only. Please refer to product description.

$72.95 CAD

** International Order Shipping Charges Apply - Read about it here.

Stock may not be available at all store locations. Inventory quantites can change without notice.

	Burlington	1
	Markham	1
	Mississauga	1

Features

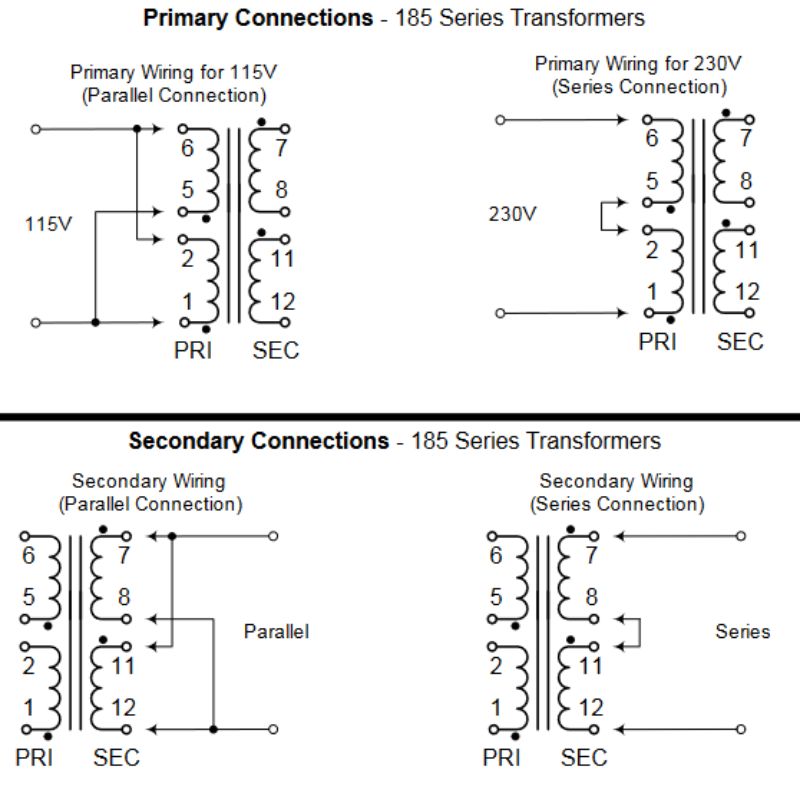

Dual primary 115/230 VAC
50/60 Hz. operation
Dual secondaries for series or parallel connections
4,000 V RMS Hipot test
Class F insulation (155 degrees, C)
Chassis mount (either two or four hole depending on size)
Dual bobbin construction
Dual use terminals (solder lug or quick connect)
C UL US recognized (E207860)
CE certified to IEC 950 (Approved to EN 60-742 Safety Isolating Transformers)
