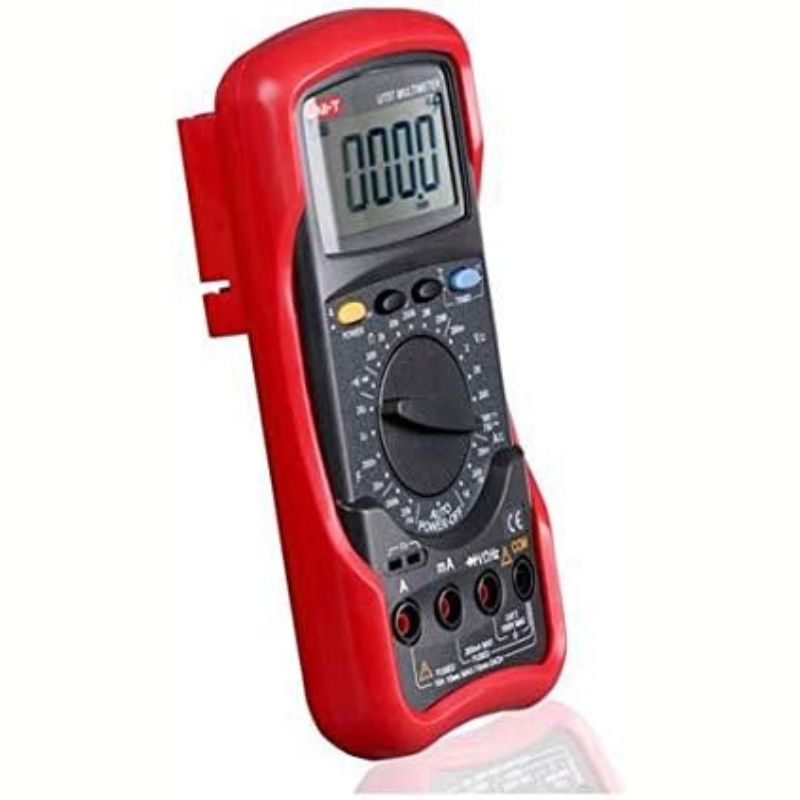

MULTIMETER DIGITAL 10A W/BASIC HFE/DIODE HANDHELD
Part No: UT51
Manufacturer: UNI-TREND TECHNOLOGY LTD.
Stock No: MJJD-811A
SKU No: 238117
REG. $59.95
$44.95 CAD SAVE $15
Stock may not be available at all store locations. Inventory quantites can change without notice.
| Burlington | 5 |
| Cambridge | 2 |
| Markham | 3 |
| Mississauga | 4 |
| Scarborough | 2 |
| Vaughan | 4 |
|
Warehouse |
8 |
Specifications | Range | Best Accuracy |
Model | | UT51 |
DC Voltage (V) | 200mV/2V/20V/200V/1000V | �(0.5%+1) |
AC Voltage (V) | 200mV/2V/20V/200V/750V | �(0.8%+3) |
DC Current (A) | 20uA/200uA/2mA/20mA/200mA/2A/10A | �(0.8%+1) |
AC Current (A) | 200uA/2mA/20mA/200mA/2A/10A | �(1%+3) |
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | �(0.8%+1) |
Features | |
Fused 10A Range | | √ |
Transistor | | √ |
Diode | | √ |
Continuity Buzzer | | √ |
Low Battery Display | | √ |
Input Impedance for DC Voltage Measurement | 10MΩ | √ |
Max. Display | 1999 | √ |
General Characteristic� |
Power | 9V Battery (6F22) |
LCD Size | 65mm�33mm |
Product Colour | Red and Grey |
Product Net Weight | 560g (including holster) |
Product Size | 190mm�88mm�34mm |
Standard Accessories | Test Lead, Batteryl, Holster |
Standard Individual Packing | Gift Box,English Manual |
Standard Quantity Per Carton | 20 Pcs |
Standard Carton Measurement | 535mm�362mm�385mm |
Standard Carton Gross Weight | 20.5 Kg |
Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) |
