MULTIMETER DIGITAL RESISTANCE VOLTAGE AC/DC PEN TYPE
Part No: UT118A
Manufacturer: UNI-TREND TECHNOLOGY LTD.
Stock No: MJW-UT118A
SKU No: 240740
Stock Number: MJW-UT118A    $44.95
MULTIMETER PEN TYPE 5128
MULTIMETER PEN TYPE 5129
MULTIMETER PEN TYPE 5130
MULTIMETER PEN TYPE 5131

Image is for illustrative purposes only. Please refer to product description.

$44.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington2
Mississauga2

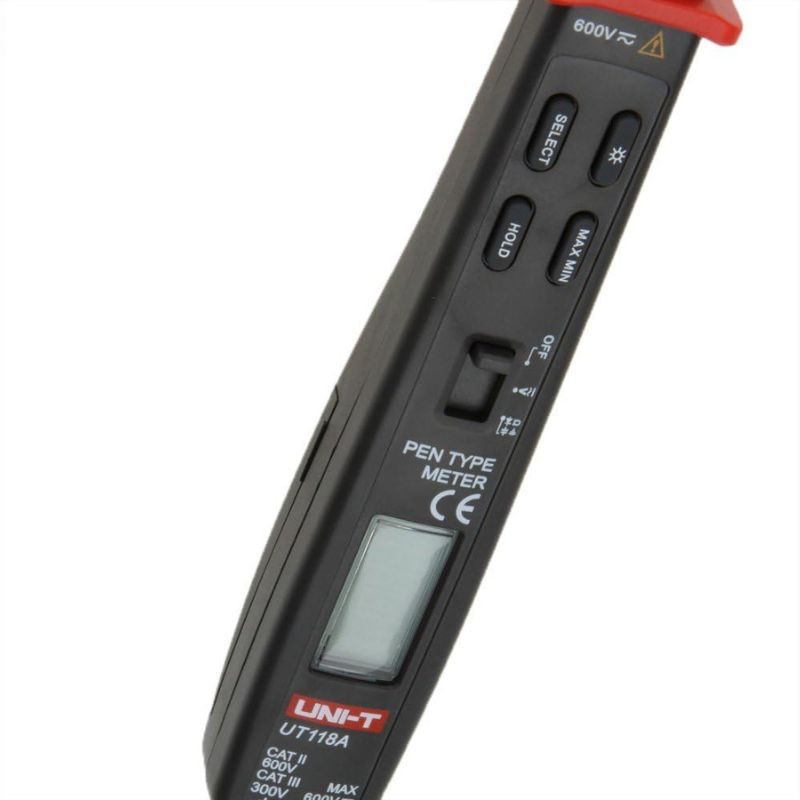

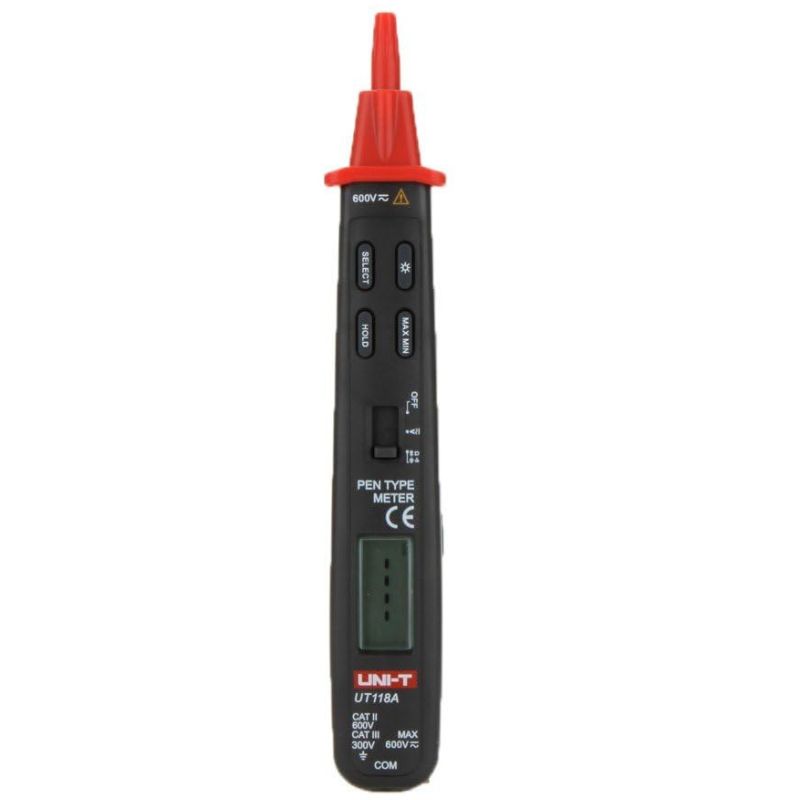

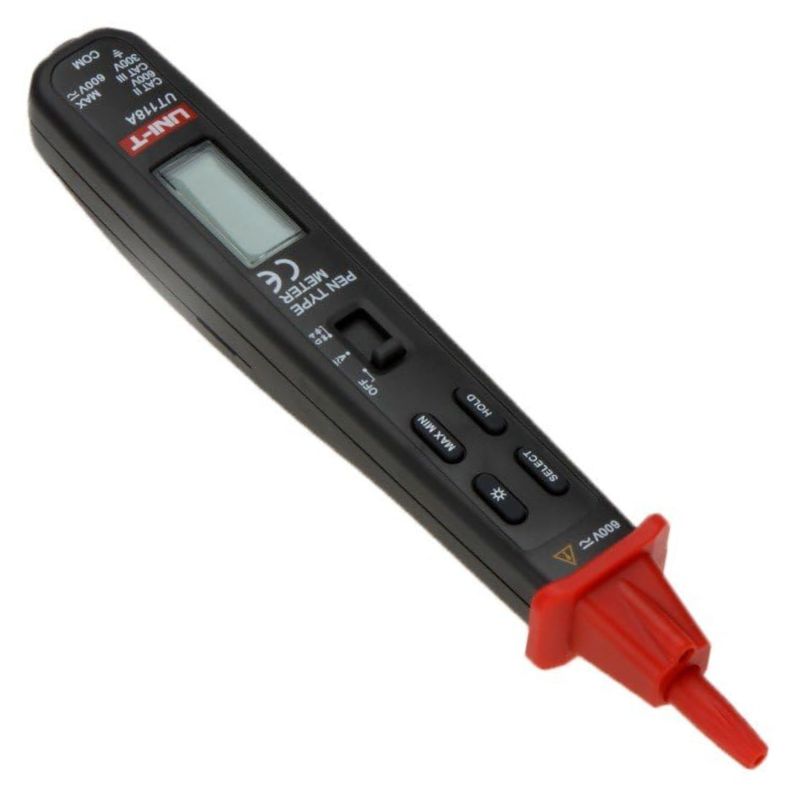

UNI-T UT118A is a digital multimeter which can measure AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.

UNI-T UT118A Digital Pen Type Multimeter Features

    Measurement functions:
  •         AC/DC voltage
  •         resistance
  •         capacitance
  •         continuity test
  •         diode test
    Data hold
    Low battery indication

Display 3000 digit LCD, back-light, 28 × 14 mm
DC voltage Range (SCAN / AUTO) SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V
Accuracy ±(1%+ 3)
AC voltage Range (SCAN / AUTO) SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V
Accuracy ±(1%+ 4)
Resistance Range (SCAN / AUTO) SCAN mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ
AUTO mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ / 30 MΩ
Accuracy ±(1%+ 3)
Capacitance Range (SCAN / AUTO) SCAN mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF
AUTO mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF / 3 mF
Accuracy ±(3%+ 5)
Power 3 V Li-MnO2 button cell battery
Dimensions 182 × 27 × 20 mm
Weight 0.090 kg


Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
