TINKERKIT DMX MASTER SHIELD
Part No: 111532
Manufacturer: ARDUINO
Stock No: 1815-GA1
SKU No: 241315
REG. $19.95
$12.95 CAD SAVE $7
Stock may not be available at all store locations. Inventory quantites can change without notice.
| Burlington | 7 |
| Cambridge | 3 |
| Markham | 26 |
| Mississauga | 1 |
| Scarborough | 7 |
| Vaughan | 2 |
|
Warehouse |
6 |
The TinkerKit! DMX Master Shield is used to drive a series of DMX receivers. In order to be programmed via Arduino, it requires the DMX Library

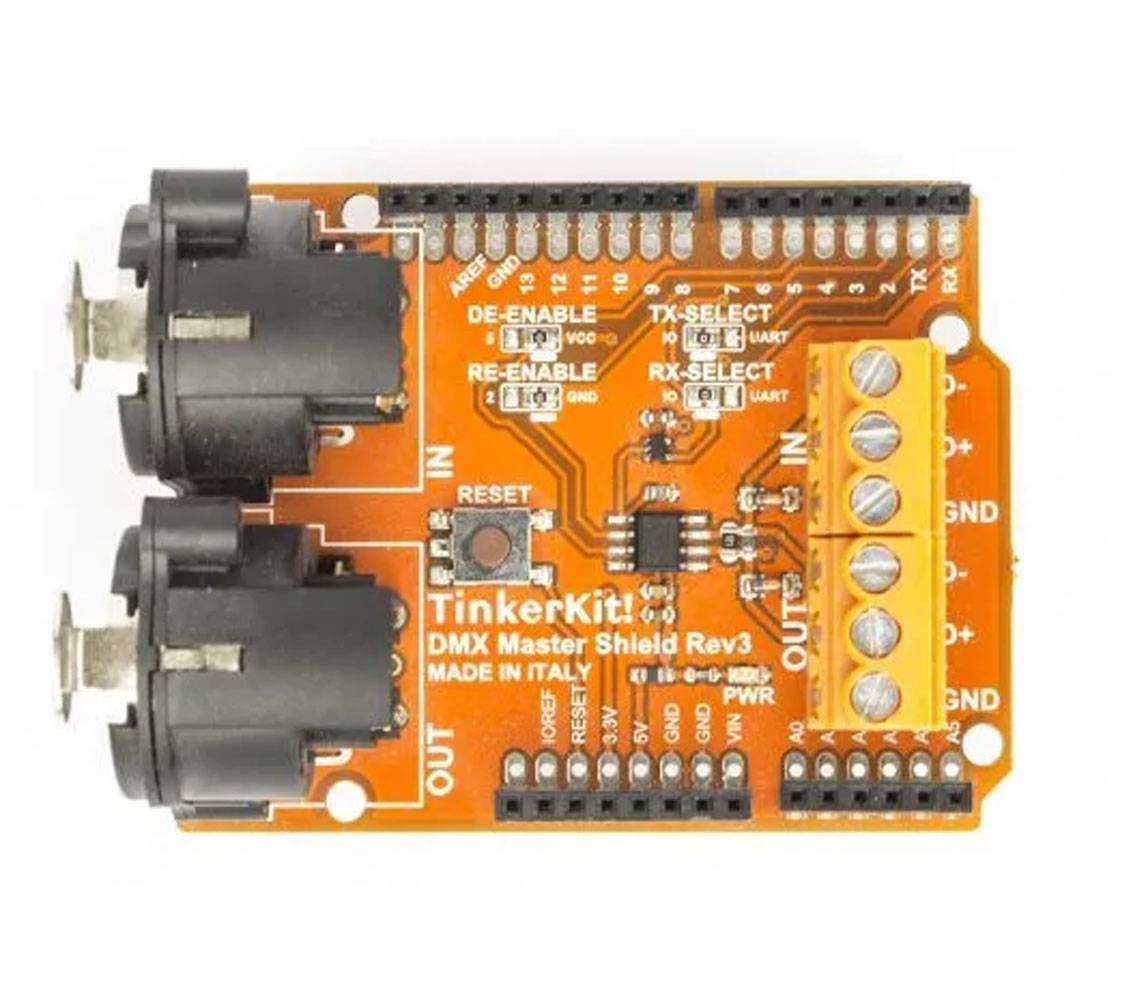

Like a regular shield it has to be plugged on top of the Arduino and it can be stacked on top of other shields.
It is used both as OUTPUT and INPUT (also if the official library at the moment supports only the OUTPUT communication). For each line it has two kinds of port that can be used: the DMX connector or normal pins.

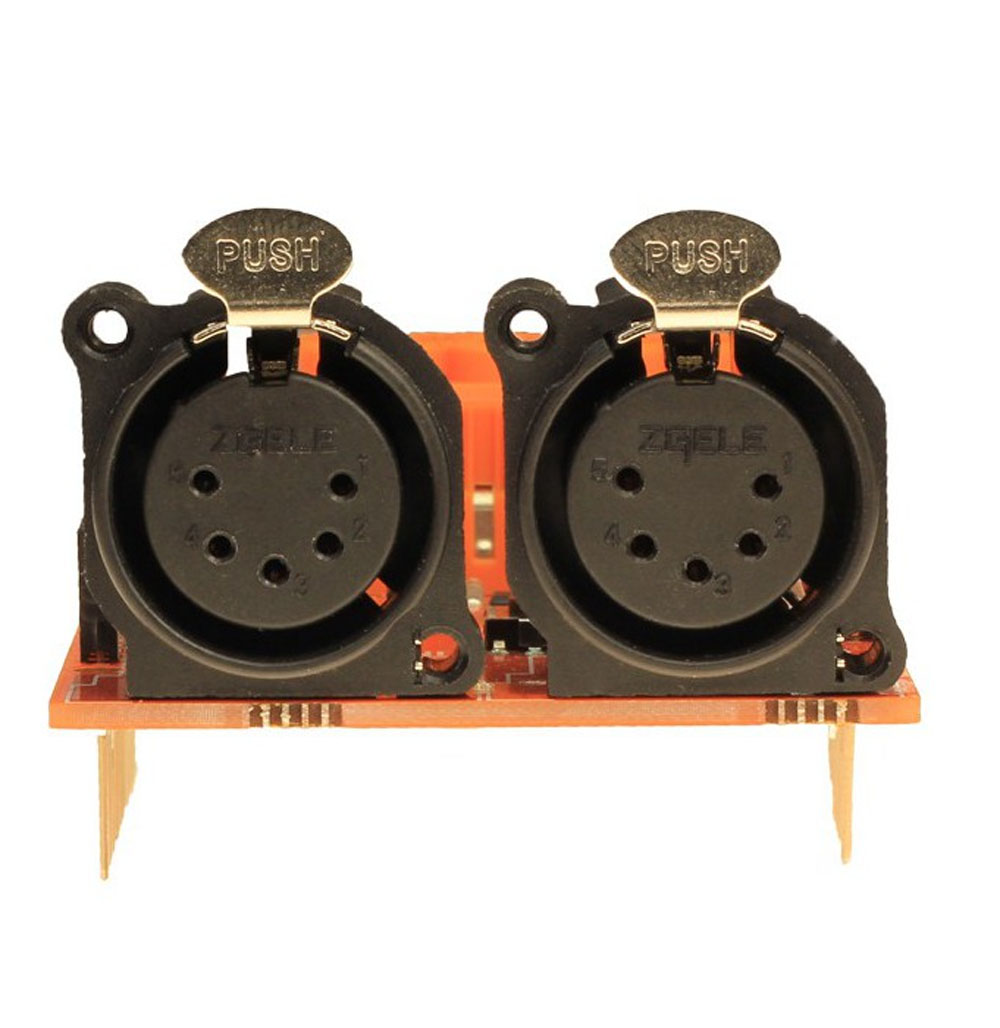

On the front it has two DMX connectors, one for the INPUT and one for the OUTPUT.
