DC-DC VOLTAGE STEP-DOWN MODULE O/P 1.25 TO35VDC I/P 3 TO 40VDC
Part No: WPM404
Manufacturer: Velleman
Stock No: 1814-NA2
SKU No: 248128
Stock Number: 1814-NA2    $13.95
MODULES COMPATIBLE WITH ARDUINO 1592
MODULES COMPATIBLE WITH ARDUINO 1593

Image is for illustrative purposes only. Please refer to product description.

$13.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington4
Cambridge3
Markham7
Mississauga10
Scarborough8
Vaughan2
Warehouse 17

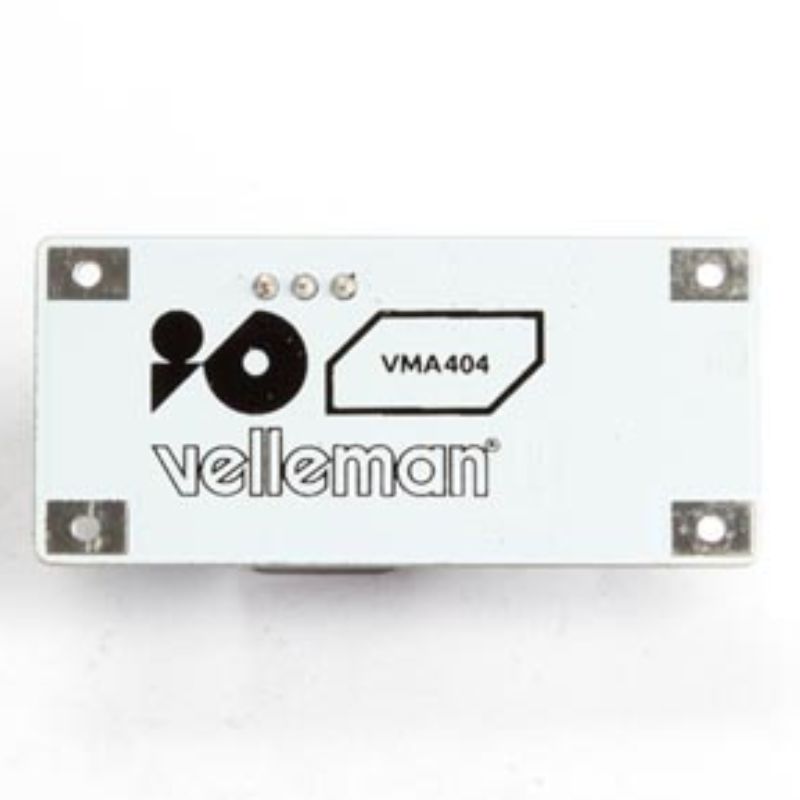

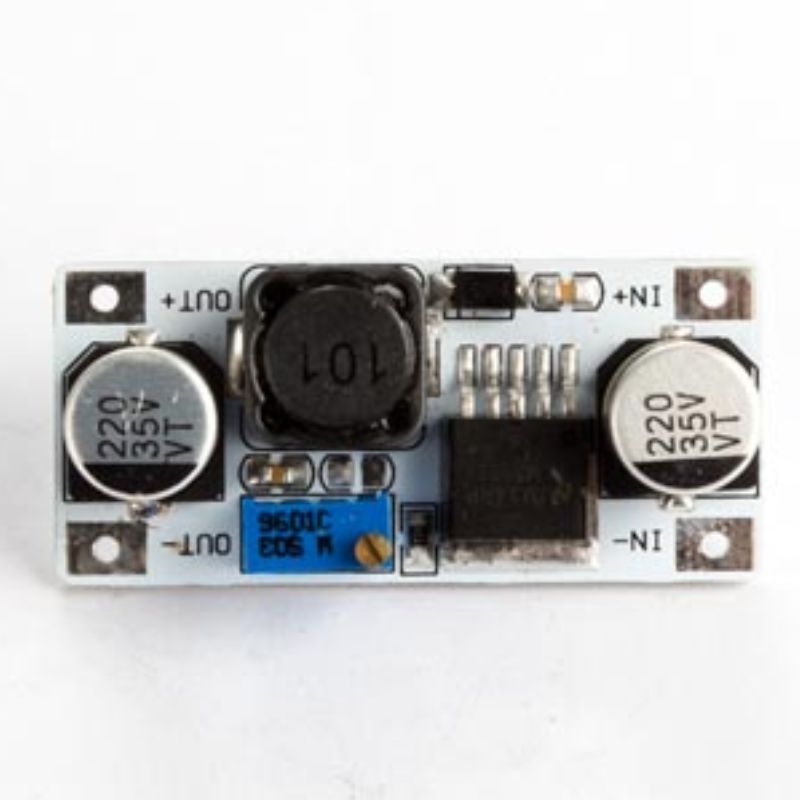

DC-DC ADJUSTABLE VOLTAGE STEP DOWN MODULE LM2596S

Specifications

  • input voltage: 3 to 40 VDC
  • output voltage: 1.25 to 35 VDC
  • max. output current: 2.5 A
  • chip: LM2596S
  • dimensions: 49 x 26 x 12 mm (1.14 x 1.02 x 0.47 " )

input voltage: 3 to 40 VDC output voltage: 1.25 to 35 VDC max. input current: 2.5 A chip: LM2596S dimensions: 49 x 26 x 12 mm
