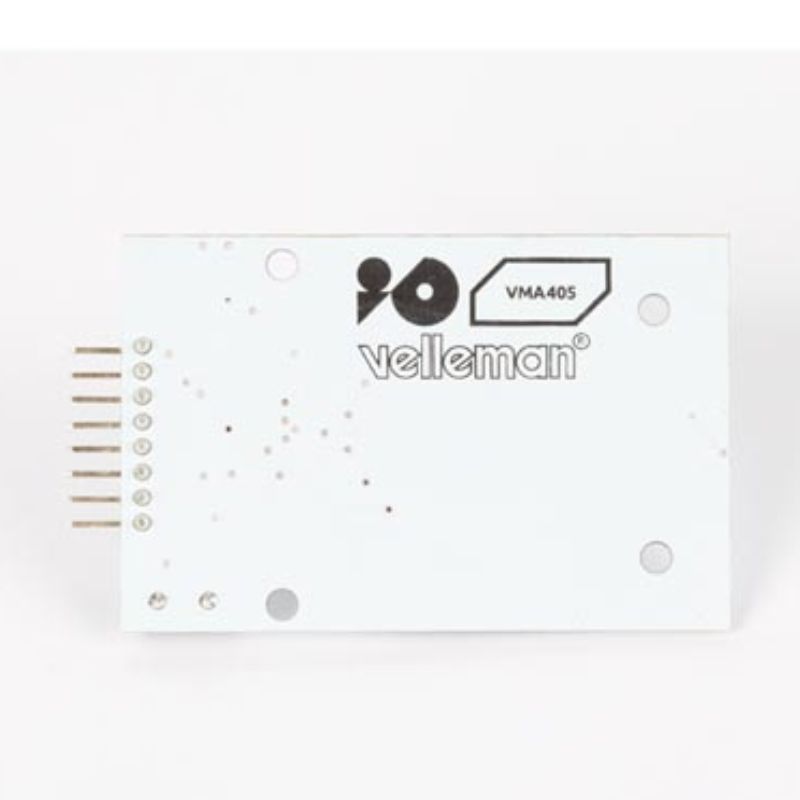

RFID READ AND WRITE MODULE COMPATIBLE WITH ARDUINO
Part No: WPI405
Manufacturer: Velleman
Stock No: 1814-GB1
SKU No: 248130
Stock Number: 1814-GB1    $19.95
MODULES COMPATIBLE WITH ARDUINO 1514
MODULES COMPATIBLE WITH ARDUINO 1515
MODULES COMPATIBLE WITH ARDUINO 1516

Image is for illustrative purposes only. Please refer to product description.

$19.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington10
Cambridge2
Markham2
Mississauga2
Scarborough2
Vaughan3
Warehouse 13

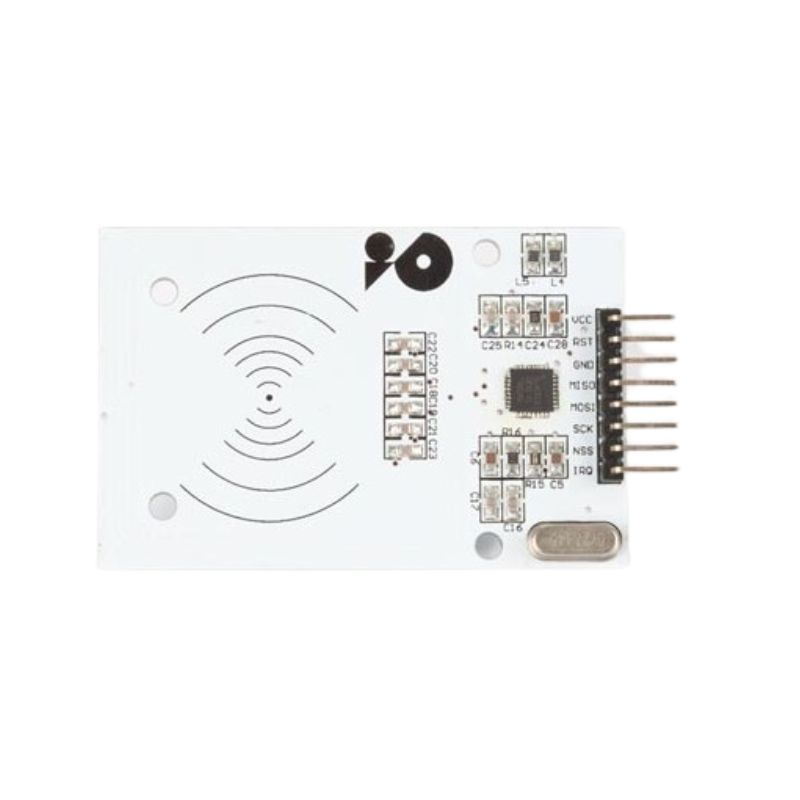

This RFID module allows to both read and write MiFare-type RFID cards. Operating Voltage: 3.3 VDC working current: 13 to 26 mA sleep current: < 80 uA peak current: < 30 mA working frequency: 13.56 MHz Supported card types : Mifare cards Interface / protocol: SPI Controller chip: MFRC522 Data transmission speed: Max. 10 Mbit / s

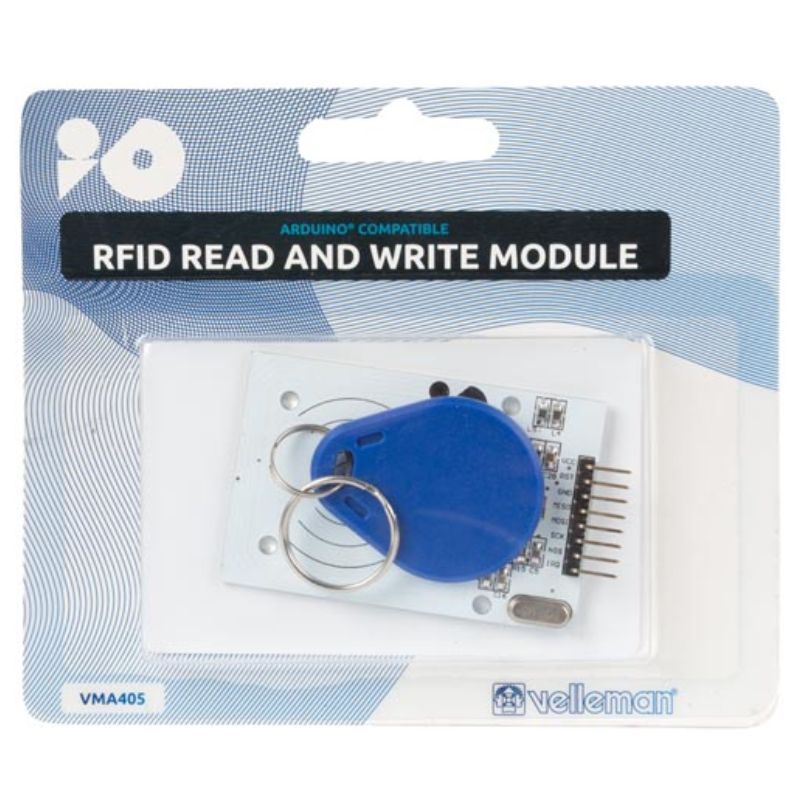

dimensions: 2.6" x 1.6" x 0.28" (66 x 40 x 7 mm) includes: 2 tags (1 card , 1 fob)
