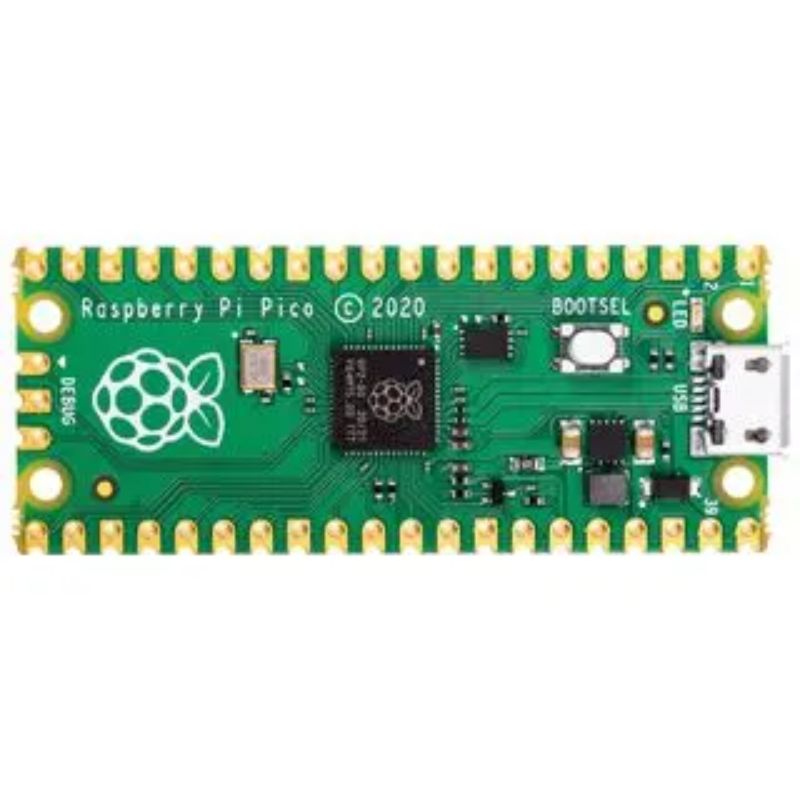

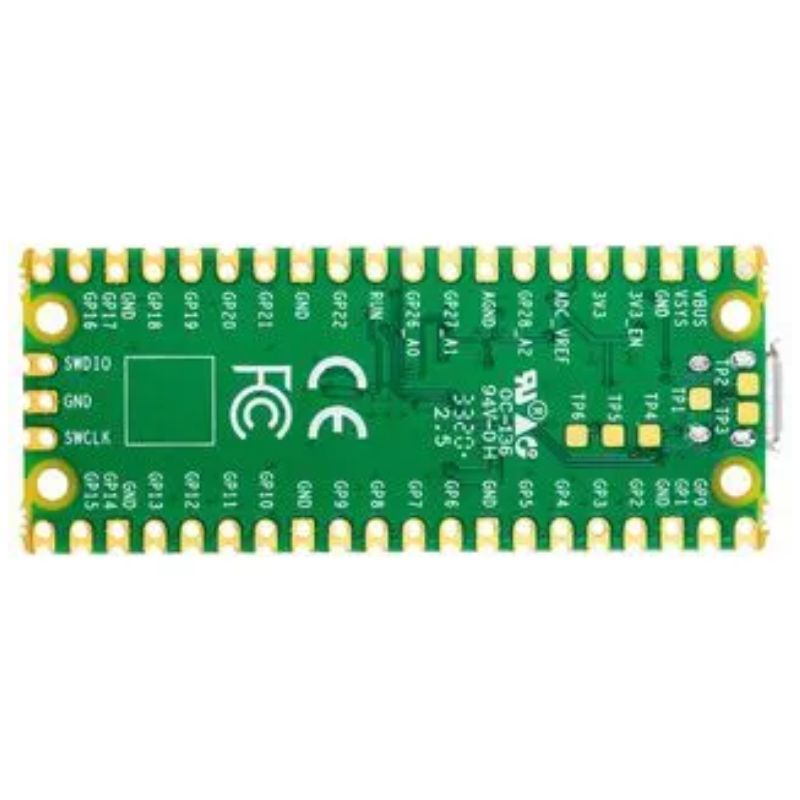

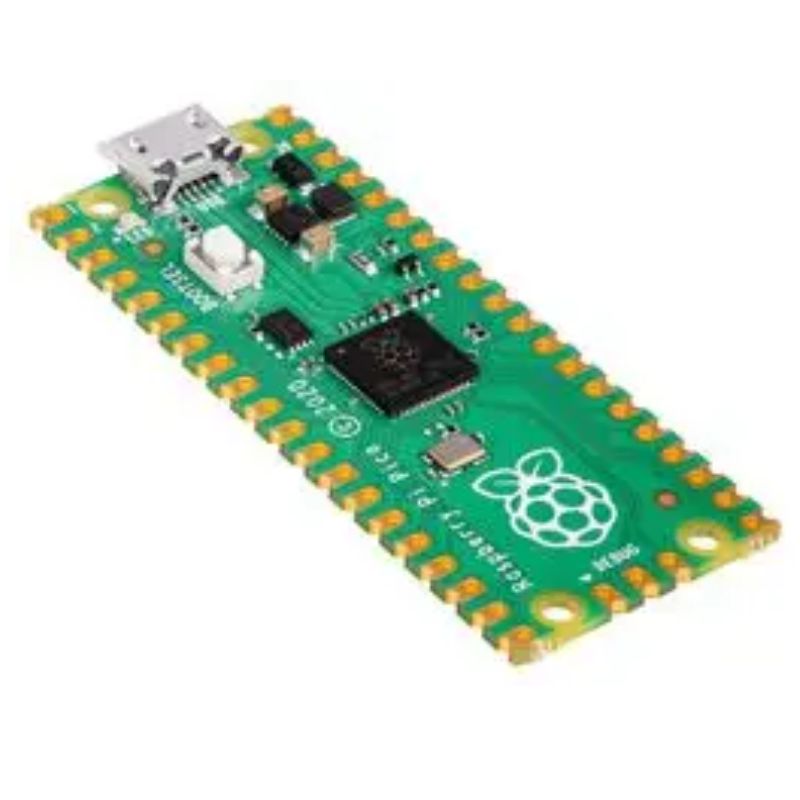

The Raspberry Pi Pico is the first product built on silicon designed in-house at Raspberry Pi (“Raspberry Silicon”). At its heart is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-M0+cores clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of on-board QSPI Flash memory for code and data storage.

A a solder-in header (like two sets of Break Away Header - Straight 40-Pin, cut into 2x20 strips and 1x3 strip) Once the header pins are in place, the Pico can be attached directly to a breadboard for wiring and prototyping.

Key Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins (3.3V ONLY)
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
