DC STEPPER MOTOR DRIVER BREAKOUT BOARD DRV8833 2CHANNEL
Part No: DRV8833
Manufacturer:
Stock No: 1814-LA2
SKU No: 262358
Stock Number: 1814-LA2    $9.95
MODULES COMPATIBLE WITH ARDUINO 560
MODULES COMPATIBLE WITH ARDUINO 561

Image is for illustrative purposes only. Please refer to product description.

$9.95 CAD
Stock may not be available at all store locations. Inventory quantites can change without notice.
Burlington2
Cambridge1
Markham2
Mississauga3
Scarborough2
Vaughan2
Warehouse 20

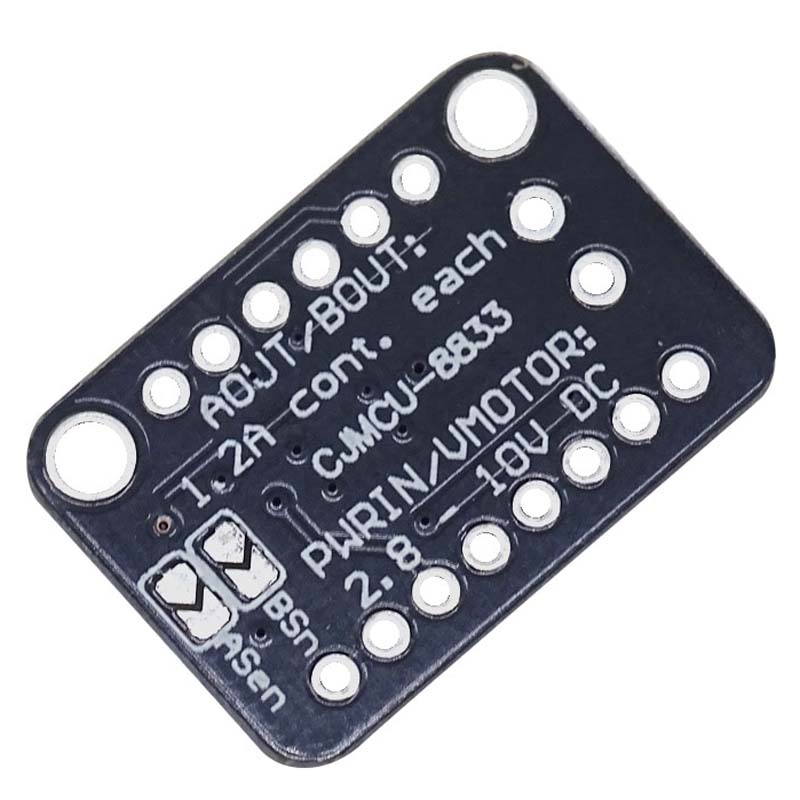

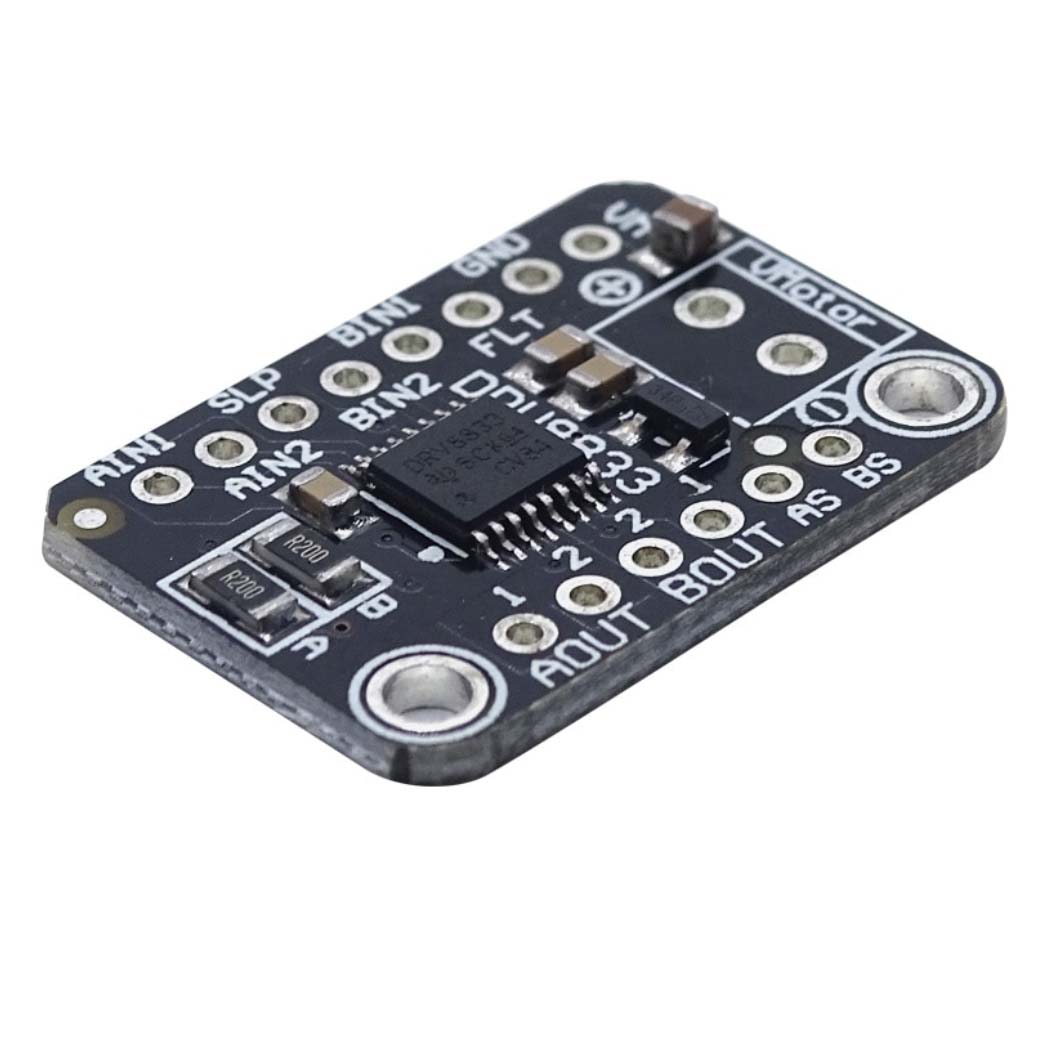

DRV8833 DC/Stepper Motor Driver Breakout Board Low voltage dual path brush type DC or single way bipolar stepping motor driver Dual channel H bridge motor driver CJMCU-8833 provides a dual channel bridge driver solution for toys, printers and other Mechatronics applications. The device has two H bridge drivers and is capable of driving two DC (DC) brush motors, a bipolar stepper motor, solenoids or other inductive loads. The output driver module of each H bridge is composed of N channel power MOSFET, which is configured as a H bridge to drive the motor windings. The MOSFET. Each H bridge includes a circuit for regulating or limiting the winding current. With the help of the correct PCB design, the DRV8833 of each H bridge can continuously provide up to 1.5-A RMS (or DC) drive current (at 25 DEG C and a 5V power supply). Each H bridge can support up to 2A peak current. Under the condition of lower VM voltage, the current supply capacity decreased slightly. The device provides the use of a fault output pin to achieve the internal shutdown function for: over-current protection, short circuit protection, undervoltage lockout and overheating. In addition, a low-power sleep mode is also provided.
