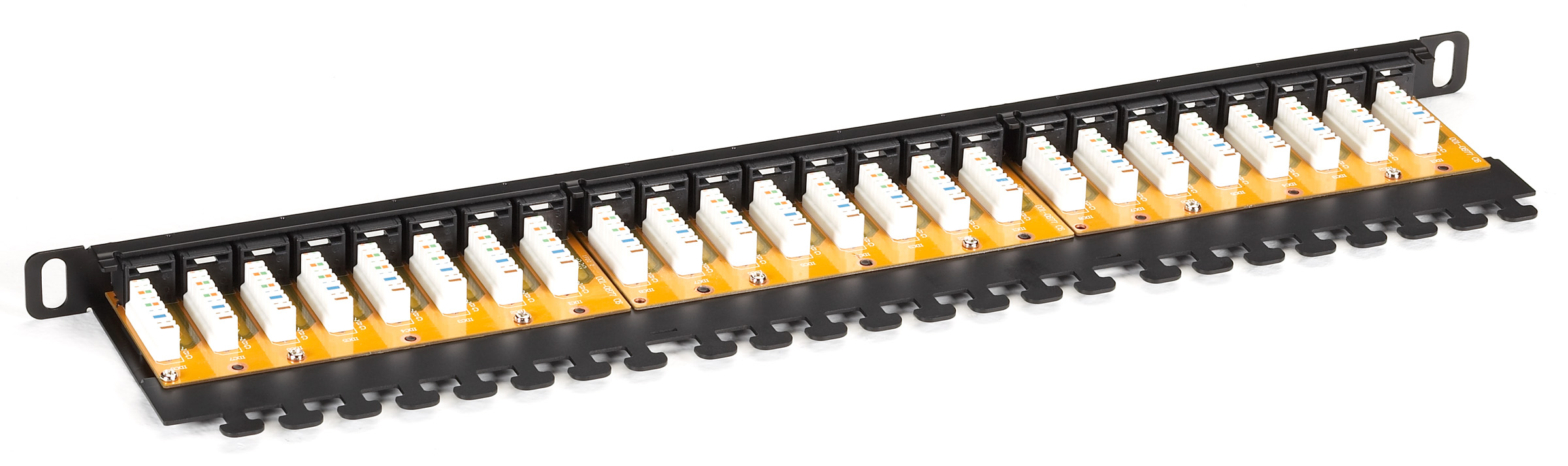

SpaceGAIN CAT5e Patch Panel - 1/2U, Unshielded, 24-Port Save space and rack units. Really tight quarters? Stack two panels and fit 48 ports in 1 RU. Ideal for retrofitting data cabinets and high-density data centers. Features RJ-45 connectors on the front and 110 blocks on the rear. To save space, 110 blocks in the rear protrude horizontally. Termination is different from standard patch panels. Cable terminates to the 110 blocks in a 90-degree, top-down manner. To terminate, slide the panel forward. Allow for 10-12 inches of cable slack behind the panel for MAC work. Includes rear cable management. Meets or exceeds CAT5e requirements. Steel construction provides strength for repeated punches. This product works with: GigaBase® 350 CAT5e Patch Cable (UTP) (EVNSL80 series) GigaBase 350 CAT5e Solid Bulk Cable (UTP) (EYN850A-PB-1000 series)

---

General Standards EIA/TIA 568C.2 Category 5e Wiring Universal Item Specifications Connectors Front: (24) RJ45 (Female); Rear: 110 Punchdown Dimensions 0.875"H (0.5U) x 19"W x 3.75"D (2.22 x 48.3 x 9.5 cm) Weight 1.7 lb. (0.771 kg) * Technical specification weight is the unit weight. It is not the packaged shipping weight.
