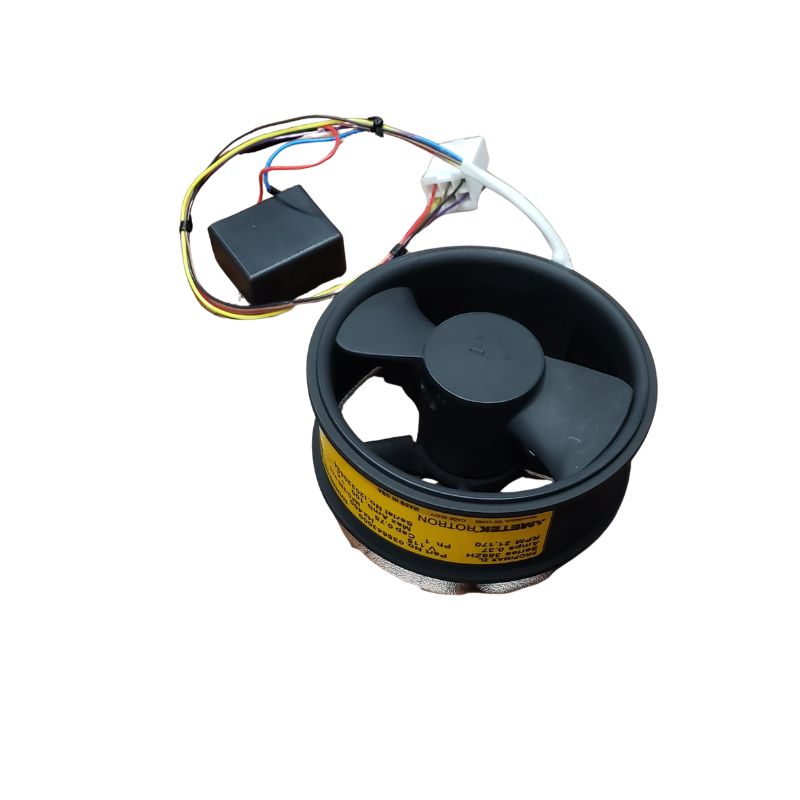

The AMETEK Rotron 035543000 Propimax 2L is a compact, high-speed tubeaxial cooling fan engineered for demanding aerospace, military and industrial applications. This model includes lead-wire connections and a Fan Performance Sensor (FPS). It is suitable for cooling avionics, communications equipment, power supplies, radar systems and other electronic enclosures requiring high airflow in limited space. Specification Details Manufacturer AMETEK Rotron Series Propimax 2L Part number 035543000 Product designation PX2L 366ZH Fan type Tubeaxial cooling fan Supply voltage 115 VAC Frequency 400 Hz Phase Single-phase Maximum airflow 125 CFM Maximum static pressure 2.9 in. H₂O Nominal speed 21,170 RPM Nominal power 42 W Line current 0.37 A Required capacitor 0.75 µF, 220 V Maximum ambient temperature 100°C Connection Lead wires Sensor Fan Performance Sensor Approximate diameter 3.25 in. Approximate length 1.54 in. Approximate weight 0.4 lb Construction Die-cast aluminum

---
