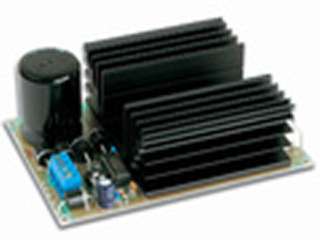

This kit is meant as an auxiliary or as a permanent power supply for all common Velleman kits based on a stabilized DC voltage between 3 and 30V provided that the consumption does not exceed 3A. Of course this power supply unit can also be used for other purposes. Be replacing the trimmer by a potentiometer, it may even be used as an adjustable power supply unit. Supplied with heatsink.
Output voltage: adjustable from 3 to 30V, stabilized
Output current: max. 3A
Output ripple voltage: 0.5mV
Short-circuit stable
Overload protected
Input voltage: 9 to 30V AC (depending on the desired output voltage)
Transformer not supplied
Dimensions: 5.1" x 3.6" x 2.0"
