15 open collector contacts: max. 50V/50mA LED indication for each output Multiple IR sensors possible (type : IR38DM) Transmitter - receiver range: up to 20m 4 different modes: 15 independent outputs 15 rotary outputs 7 independent outputs & 8 rotary outputs 7 rotary outputs & 8 rotary outputs (independent from each other) 3 addresses allow the use of multiple receivers in one room

---

Power supply: 8 ~ 14VDC or 2x6 ~ 2x12VAC (150mA) Current consumption: All outputs off: 10mA All output on: 150mA Dimensions: 2.8" x 4.5"

• Part No

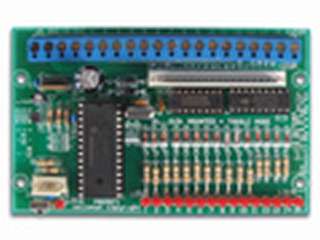

  K8050

• Manufacturer

  Velleman

• Stock No

  2031-SE3

• SKU No

  204608

Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
