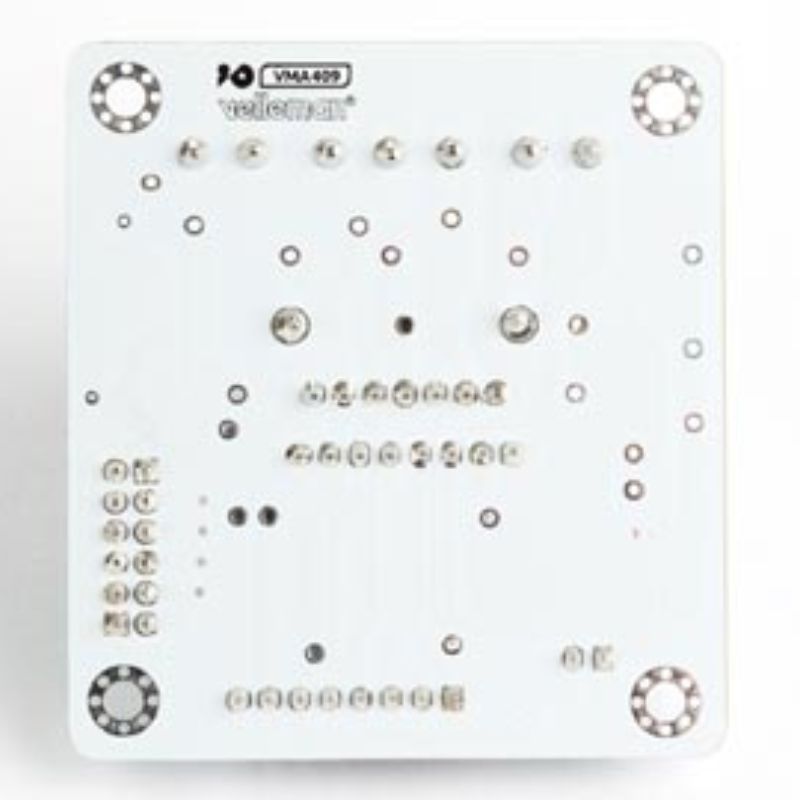

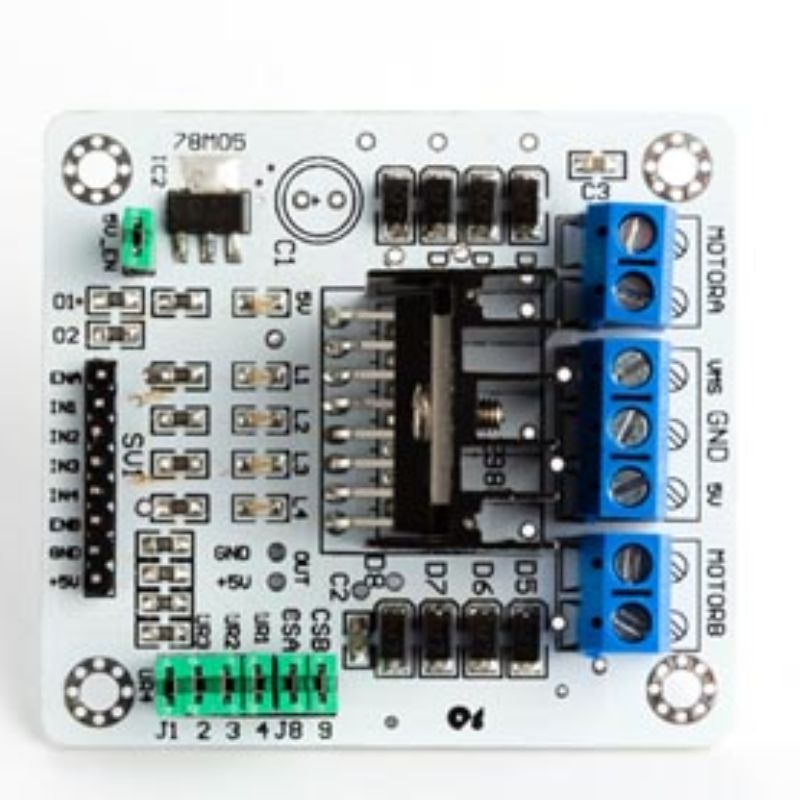

This module allows full control of two DC motors or one stepper motor.

Specifications

• driver: L298N
• driver power supply: + 5 V to + 35 V
• driver output current (max.): 2A
• logic power output Vss: +5 V to +7 V (internal supply +5 V)
• logic current: 0-36 mA
• controlling level: low -0.3 V to 1.5 V, high: 2.3 V-Vss
• enable signal level: low -0.3 V to 1.5 V, high: 2.3 V-Vss
• max. power: 25 W
• working temperature: -25 to +130 °C ( -13 to 266 °F )
• dimensions: 69 x 56 x 36 mm ( 2.71 x 2.2 x 1.41 inches )
