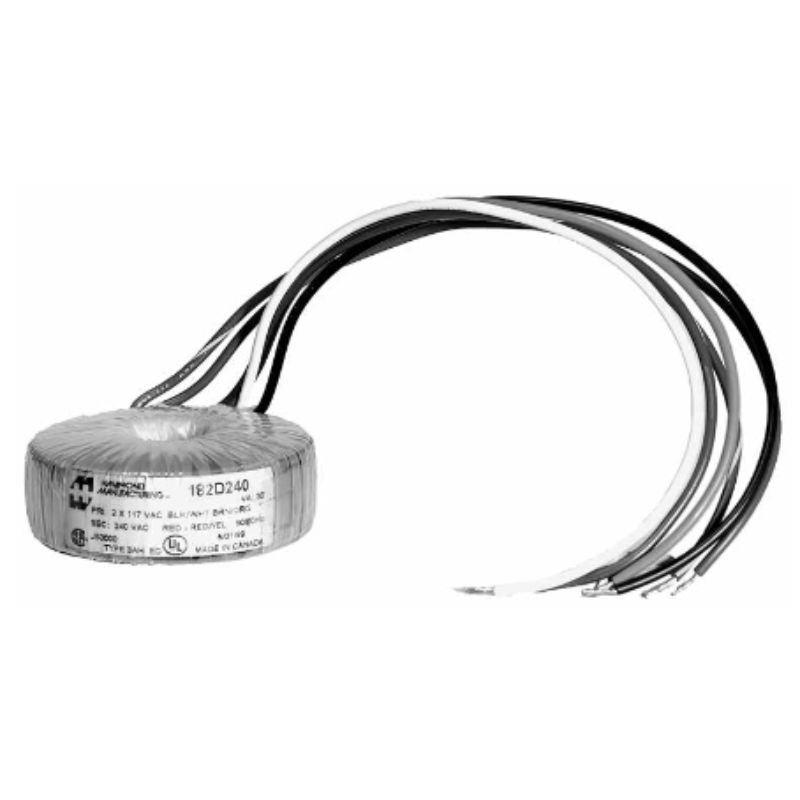

• Low profile, lightweight, cool running - due to high efficiency toroidal design

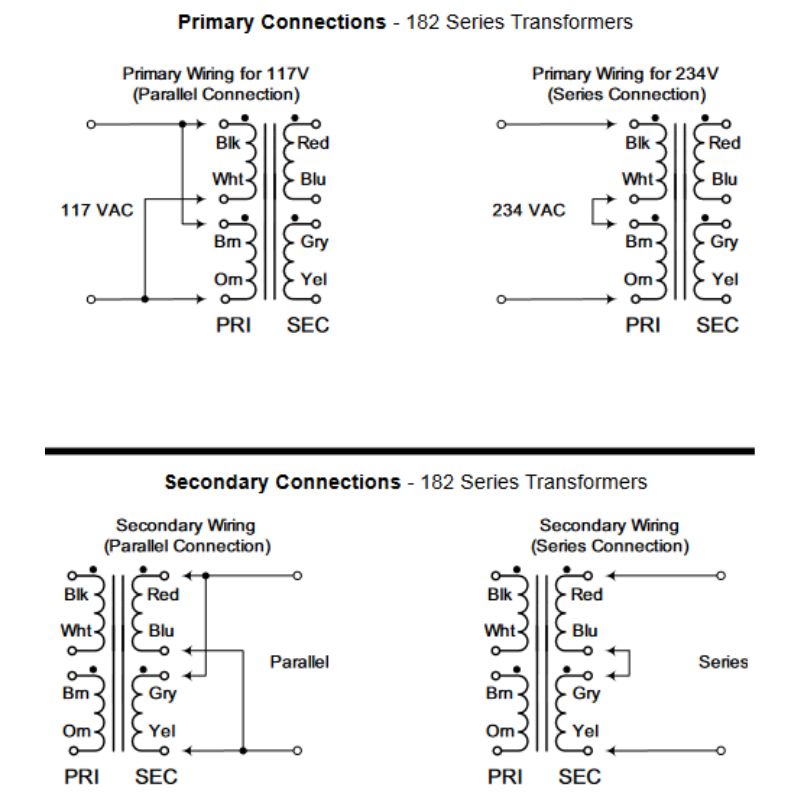

• Dual 117/234 VAC primary, 50/60 Hz. operation
• Units are designed to have all windings engaged.
• Center single hole mounting - units over 225VA include a potted center (see photos
• below) for extra mounting strength.
• Supplied with two rubber insulating pads, one metal centering washer and all mounting
• hardware (160VA and under)
• Supplied with one bottom rubber insulating pad and mounting hardware (225VA and
• larger)
• Center bolt size varies with VA - see tables below.
• Minimum 8" long flexible leads
• Hi-Pot test of 4,000V RMS between primary & secondary
• CSA certified to C22.2 #66 - CSA file #209651
• UL recognized to UL506 - UL file #E207860
• CE certified to IEC950

Due to the superior magnetic properties of Toroidal transformers they will be susceptible
to high magnetizing current when initially energized, only limited by the low DC resistance
of the primary winding. Depending on where you are in the AC cycle when the
transformer is energized dictates the chances of overloading the supply circuit. This is
why the transformer may sometimes energize without a problem and other times it will
blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than
a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed
circuit breaker or other form of soft start circuitry for the supply line when using these high
efficient Toroidal transformers.
