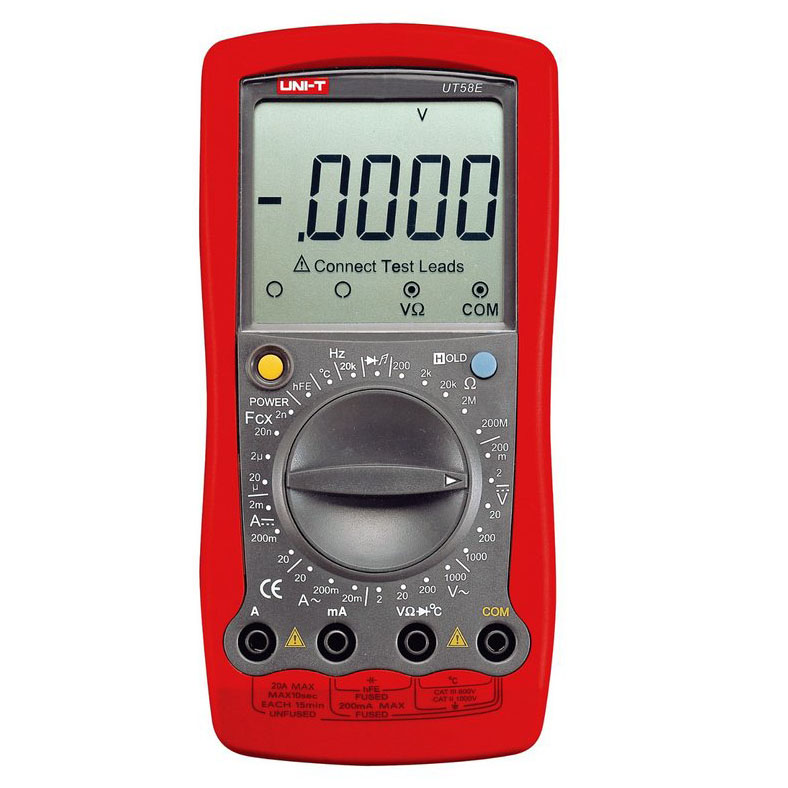

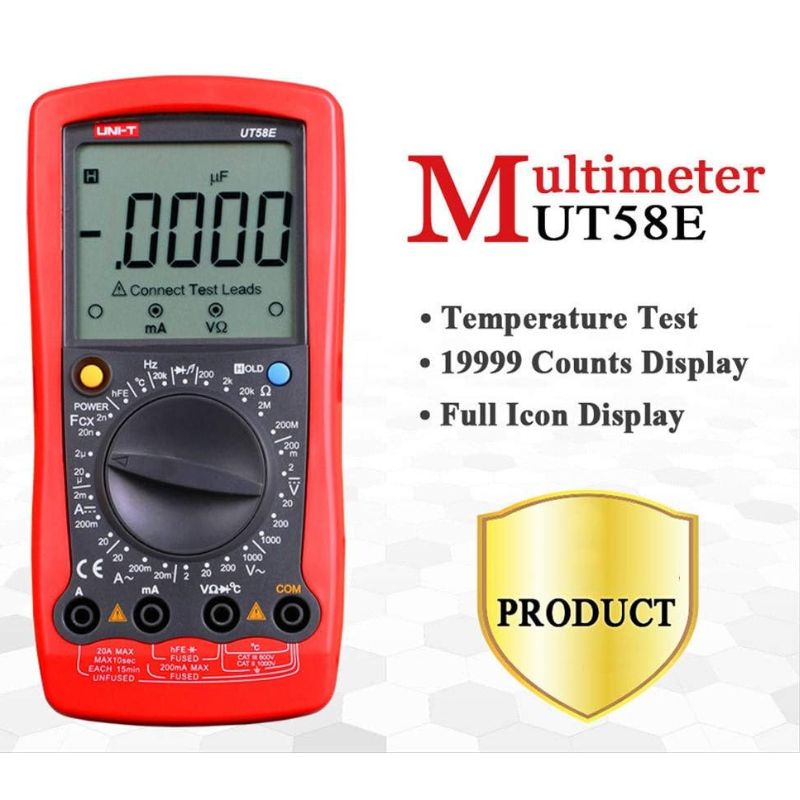

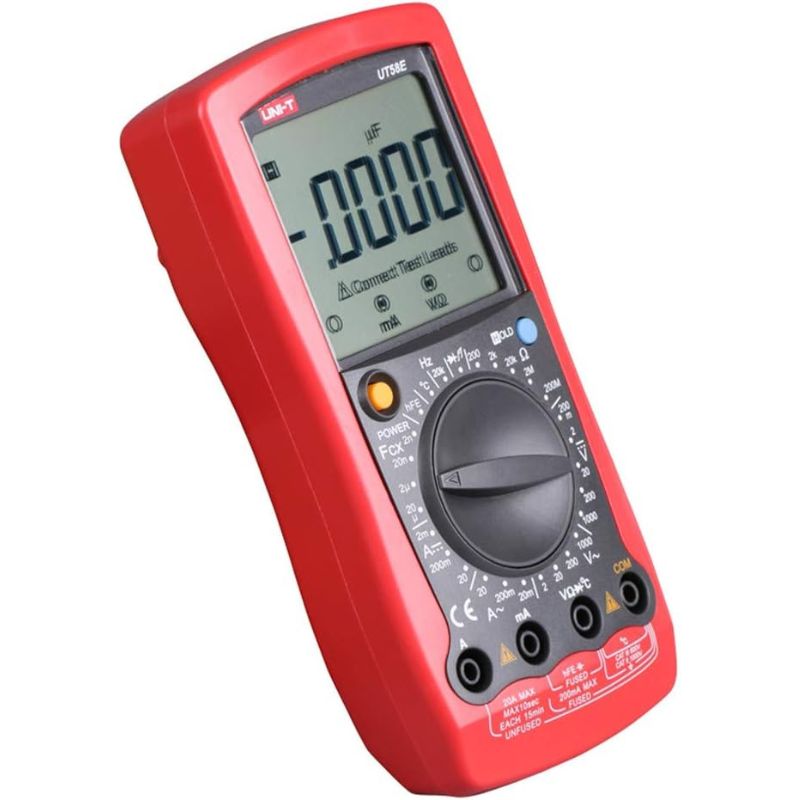

Digital Multimeter Ut58e � 1000v Ac/dc, 20a Current, Capacitance, Temperature, Diode & Transistor Testing, Auto Power Off, Data Hold, Lcd Display

Part#:UT58E Stock#: MJJP-882YY SKU: 238127

$94.95 CAD

Availability

23 in stock

About this item

Versatile Measurement Functions – Measures DC/AC voltage (up to 1000V), DC/AC current (up to 20A), resistance (up to 200MΩ), capacitance (up to 20μF), frequency (up to 20kHz), and temperature (-40°C to 1000°C).

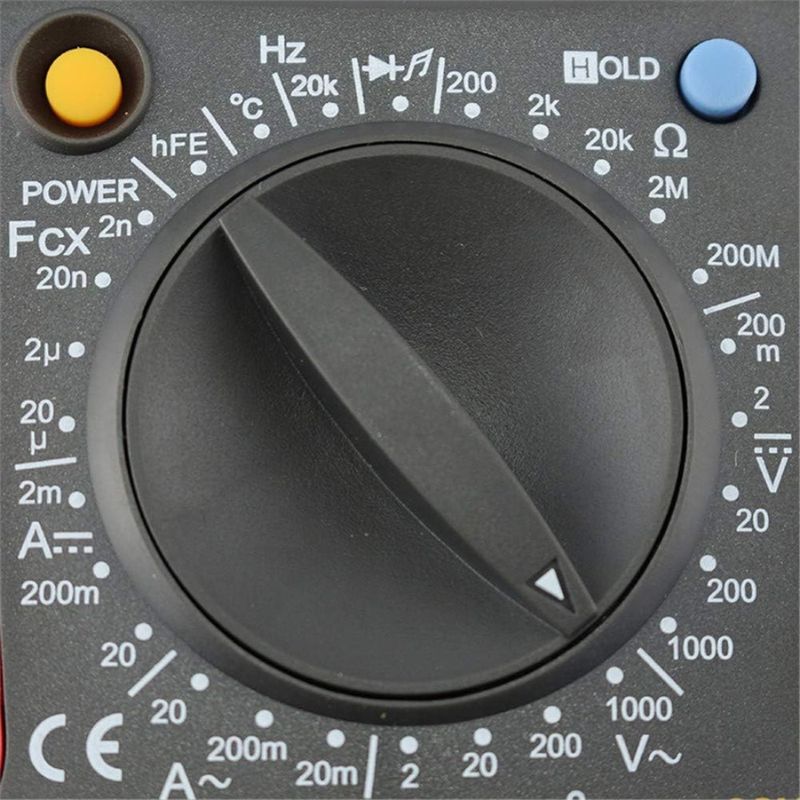

User-Friendly Features – Equipped with manual range selection, diode and transistor testing, continuity buzzer, data hold function, and auto power-off for efficiency and ease of use.
Large LCD Display – 60mm x 54mm screen with full icon display for clear and accurate readings in various working conditions.

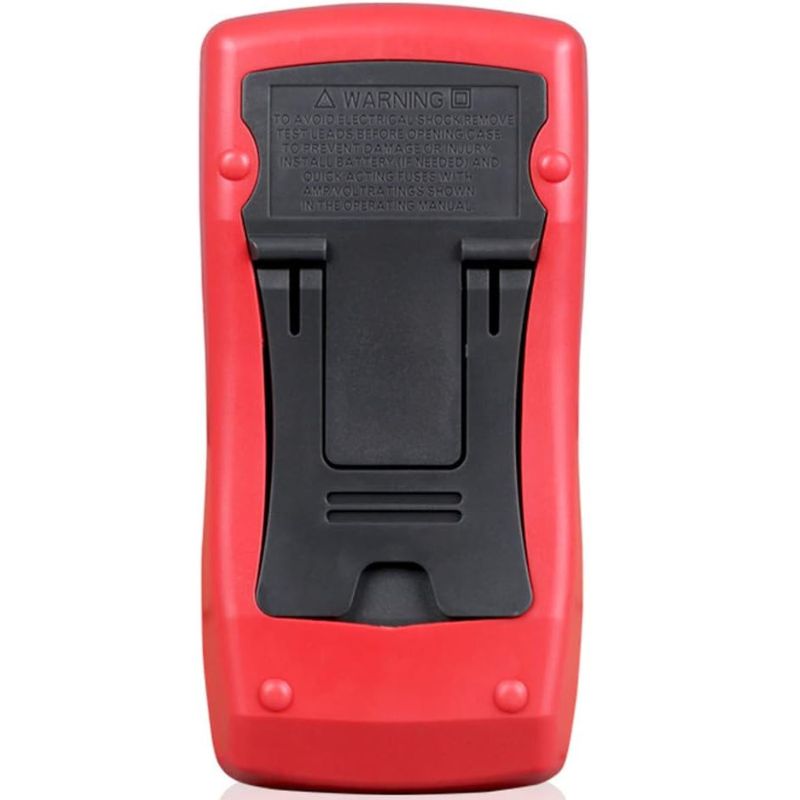

Durable & Portable Design – Lightweight at 350g, with a protective red and grey holster and a compact size (179mm x 88mm x 39mm) for easy handling.

Stock and Aisle Location

Store	Qty	Aisle
Burlington	3
Cambridge	2
Markham	2
Mississauga	3
Scarborough	2
Vaughan	2
Warehouse	9

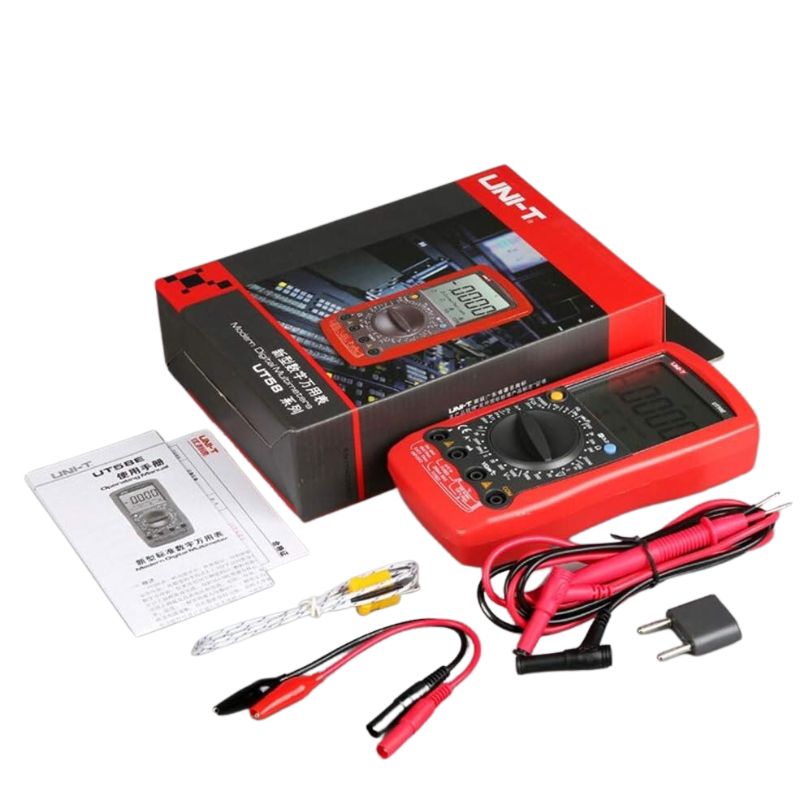

Specifications Range Best Accuracy Model 　 UT58E DC Voltage (V) 200mV/2V/20V/200V/1000V ±(0.05%+3) AC Voltage (V) 2V/20V/200V/1000V ±(0.5%+10) DC Current (A) 2mA/20mA/20A ±(0.5%+5) AC Current (A) 20mA/200mA/20A ±(0.8%+10) Resistance (Ω) 200Ω/2KΩ/20KΩ/2MΩ/200MΩ ±(0.5%+10) Capacitance (F) 2nF/20nF/2μF/20μF ±(3%+4) Frequency (Hz) 20KHz ±(1.5%+5) Temperature (°C) -40 °C ～ 1000°C ±(1%+30) Features Display Count 2000 Manual Range √ Diode √ Transistor √ Auto Power Off √ Continuity Buzzer √ Data Hold √ Low Battery Indication √ Full Icon Display √ Input Impedance for DCV Around 10MΩ √ Test Lead Connection Indications √ General Characteristic Power 9V Battery（6F22) LCD Size 60mm×54mm Product Color Red and Grey Product Net Weight 350g （Including holster) Product Size 179mm×88mm×39mm Standard Accessories Battery, Test Lead,Holster,Muli-Purpose Socket,Point Contact Temperature Probe Standard Individual Packing Gift Box, English Manual Standard Quantity Per Carton 40 PCs Standard Carton Measurement 598mm×418mm×340mm (0.085 CBM Per Standard Carton) Standard Carton Gross Weight 27 Kg

Product Manual (en)
