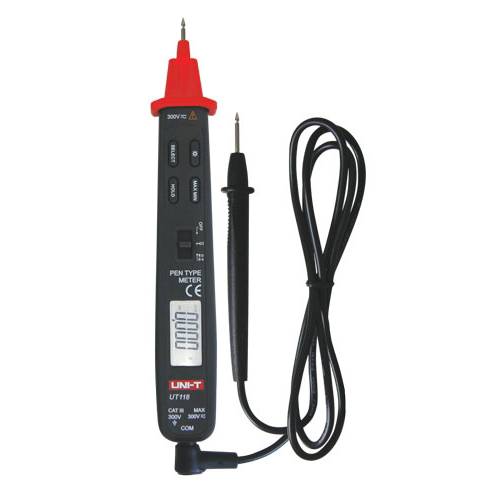

UNI-T UT118A is a digital multimeter which can measure AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.
UNI-T UT118A Digital Pen Type Multimeter Features
Measurement functions:
- AC/DC voltage
- resistance
- capacitance
- continuity test
- diode test
Data hold
Low battery indication
| Display |
3000 digit LCD, back-light, 28 × 14 mm |
| DC voltage |
Range (SCAN / AUTO) |
SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V |
| Accuracy |
±(1%+ 3) |
| AC voltage |
Range (SCAN / AUTO) |
SCAN mode: 3 V / 30 V / 300 V
AUTO mode: 3 V / 30 V / 300 V |
| Accuracy |
±(1%+ 4) |
| Resistance |
Range (SCAN / AUTO) |
SCAN mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ
AUTO mode: 300 Ω / 3 kΩ / 30 kΩ / 300 kΩ / 3 MΩ / 30 MΩ |
| Accuracy |
±(1%+ 3) |
| Capacitance |
Range (SCAN / AUTO) |
SCAN mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF
AUTO mode: 3 nF / 30 nF / 300 nF / 3 μF / 30 μF / 300 μF / 3 mF
|
| Accuracy |
±(3%+ 5) |
| Power |
3 V Li-MnO2 button cell battery |
| Dimensions |
182 × 27 × 20 mm |
| Weight |
0.090 kg |
-
Part No
UT118A
-
Manufacturer
UNI-TREND TECHNOLOGY LTD.
-
Stock No
MJW-UT118A
-
SKU No
240740
*Prices subject to change without notice. We reserve the right to limit quantities.
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
