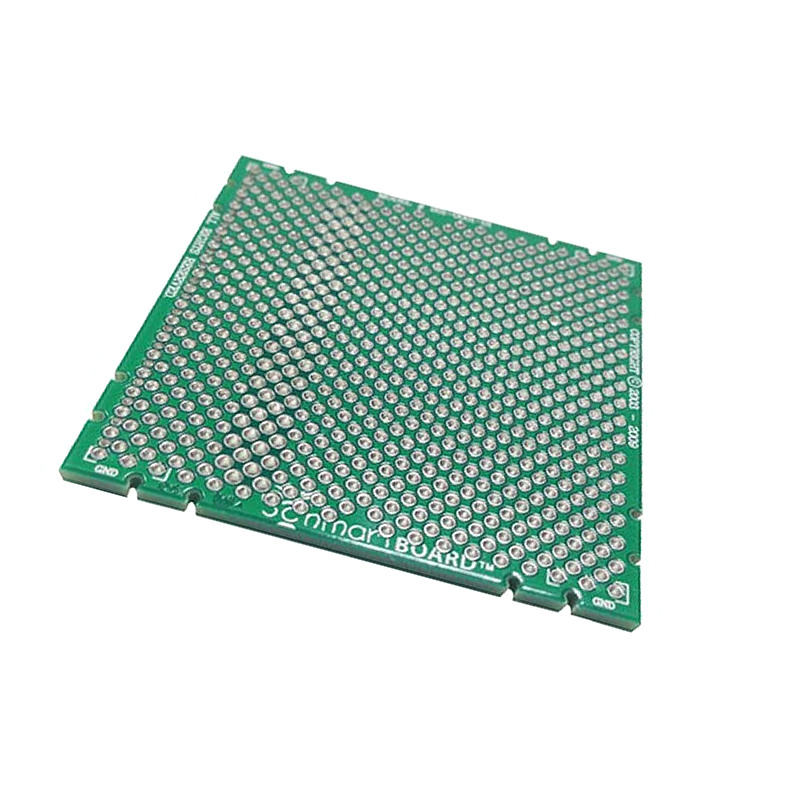

Schmartboard Through Hole Prototyping Boardwith 0.05" row offset. 2 x 2 inches 0.1 inch spacing 100% support of the through hole components with the 0.1" spacing pitch. 12 ground holes are connected a copper plane on the bottom side.
Components such as capacitor, resistor, diode, inductor, crystal, headers, jumpers, fuse, transistors, voltage regulators, DIP IC 70 pins or sockets, DIP switches, relay, RJ11, RJ45 connector...etc. are supported.
Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit. Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit. This saves time and money.
Features:- 2 x 2 inch board
- 0.1 inch spacing w/ 0.05 inch offset rails
- 0.038 inch hole diameter
- 3-hole common {Ground} rail in each corner
- RoHS Compliant
- model 201-0001-01
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
0+
-
Part No
2760161
-
Manufacturer
Radio Shack
-
Stock No
EFW-6202A
-
SKU No
244112
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
