GYROSCOPE SENSOR MODULE

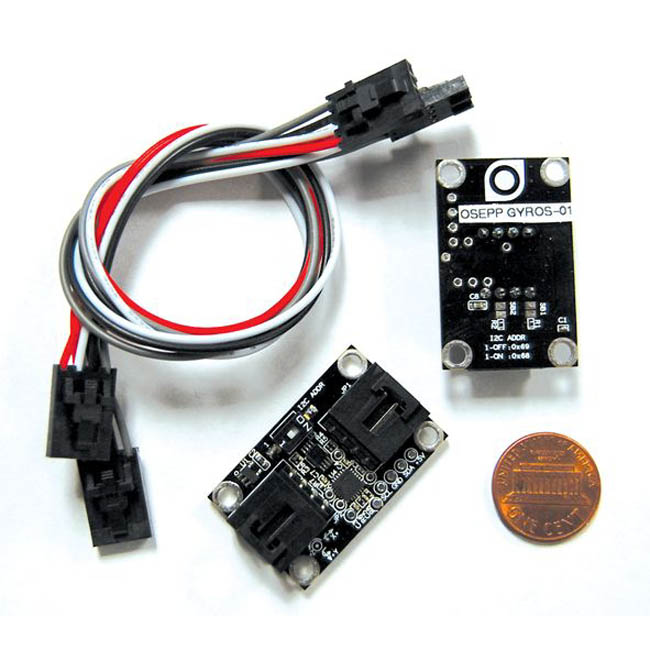

Gyroscope Sensor Module Gyroscope Sensor Module is a 3-Axis gyroscope sensor. It utilizes the InvenSense MPU3050 Motion Processor Unit providing a full-scale range from +/- 250˚/s up to +/-2000˚/s of angular rate measurement while providing the highest robustness supporting 10 000 g of shock. The module uses the I²C interface for data communication. The I²C lines are packaged with the power and ground lines into a modular connector, which allows easy plug and play operation. There are two connectors on the module to enable daisy chaining of multiple I²C devices together. The OSEPP Gyroscope Sensor Module combined with the OSEPP Accelerometer Sensor Module can deliver a complete 6-axis sensor for full motion detection. Features Plug and play with OSEPP I²C Expansion Shield X-, Y-, Z- Axis angular rate gyros sensor Programmable angular rate sensors with full-scale-range of +/-250, 500, 1000, or 2000 ˚/s 16-bit ADC for digitizing sensor output, sample rate programmable from 8000 samples/sec down to 3.9 samples per second Supports I²C interfacing with 2 programmable 7-bit address of 0x68 or 0x69 Provides pass-through connector to support daisy chaining of multiple sensors from the OSEPP Sensor Module family Provides 0.1” breakout points for power and I²C interface pins access

---

I²C Addresses (7-bit) 0x68, 0x69 Form Factor 23 mm x 36 mm Power Consumption 30.5 mW (Active); 0.025 mW (Sleep) Connector Pin Definition Pin 1: Power Pin 2: I²C Data Pin 3: Ground Pin 4: I²C Clock

• Part No

  GYROS-01

• Manufacturer

  OSEPP

• Stock No

  1814-RF1

• SKU No

  247312

Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
