ARDUINO COMPATIBLE MOS DRIVING MODULE

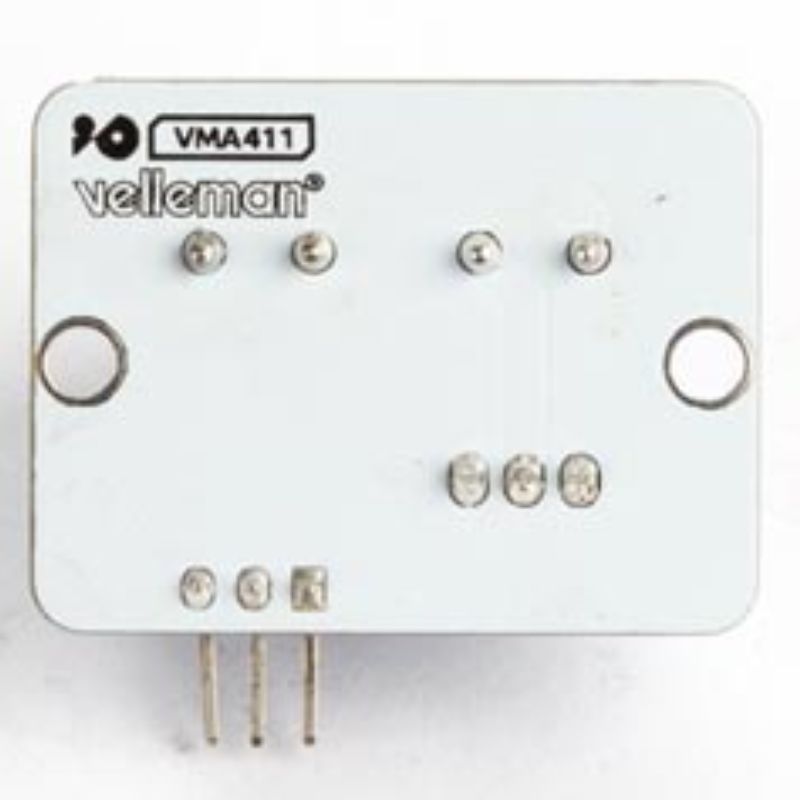

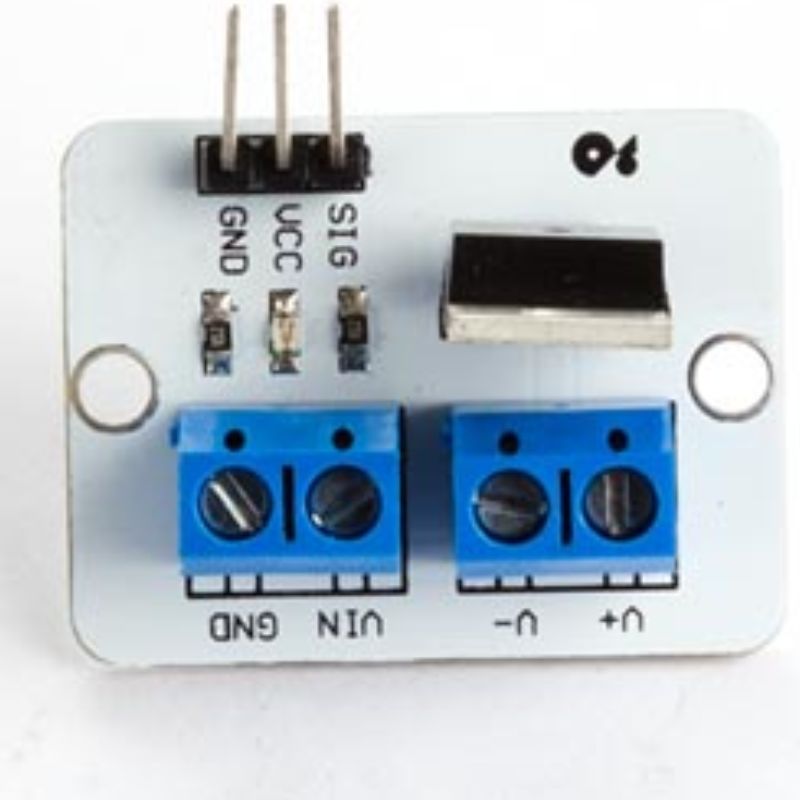

This little module is a breakout board for the IRF520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller.
Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads.
Specifications:
- Operating voltage: 3 to 5 VDC
- Max. load voltage: 0 to 24 VDC
- Input: SIG pin, logic level 3 to 5 VDC
- Max. load current: 5 A (a heatsink is required for loads > 1 A)
- MOSFET: IRF520
- Dimensions: 34 x 21 x 16 mm
-
Part No
WPM411
-
Manufacturer
Velleman
-
Stock No
1814-LB4
-
SKU No
248137
*Prices subject to change without notice. We reserve the right to limit quantities.
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
