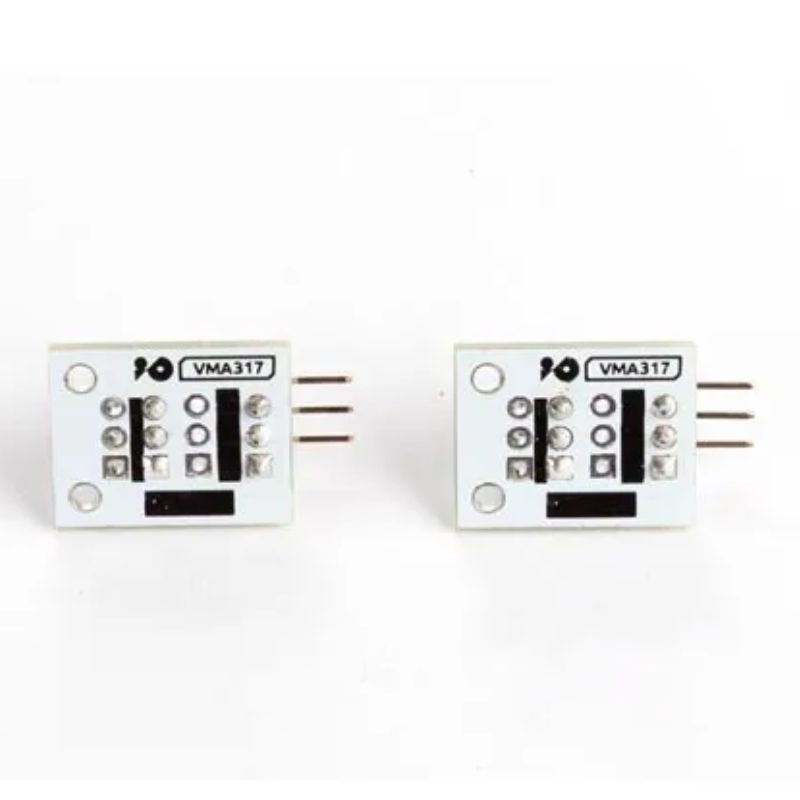

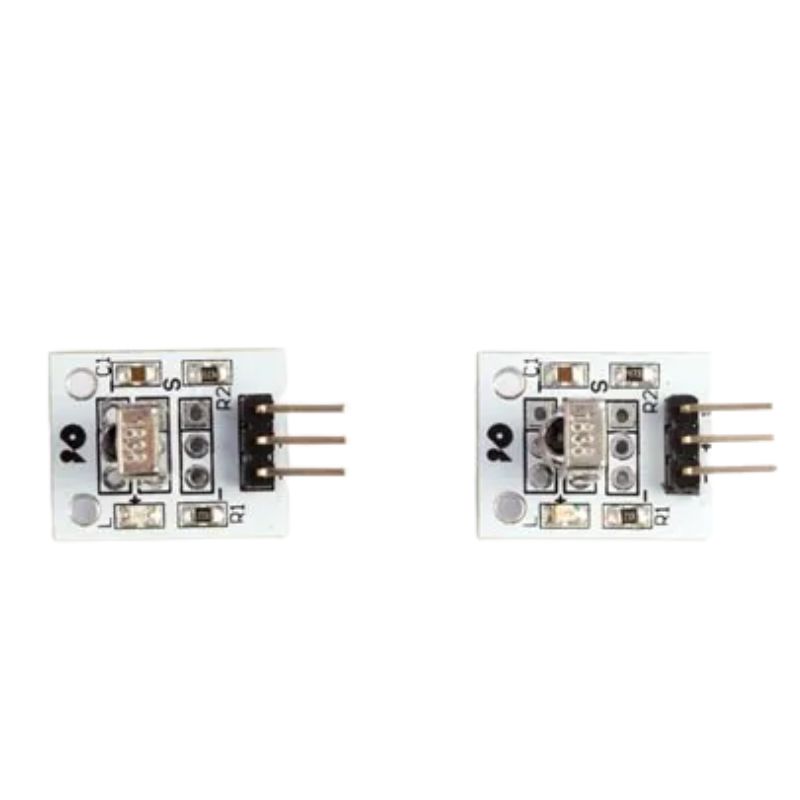

The VMA317 (1838) is a miniaturized infrared receiver for remote control and other applications requiring improved ambient light rejection.
Features
photo detector and preamplifier in one package
internal filter for PCM frequency
inner shield, good anti-interference ability
high immunity against ambient light
improved shielding against electric field disturbance
3.0 V or 5.0 V supply voltage; low power consumption
TTL and CMOS compatibility
supply voltage: 3 to 5 VDC
max. supply current: 1.5 mA
B.P.F. center frequency: 37.9 KHz
dimensions: 28 x 15 x 10 mm
-
Part No
WPI317
-
Manufacturer
-
Stock No
1814-DA3-2
-
SKU No
253933
*Prices subject to change without notice. We reserve the right to limit quantities.
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
